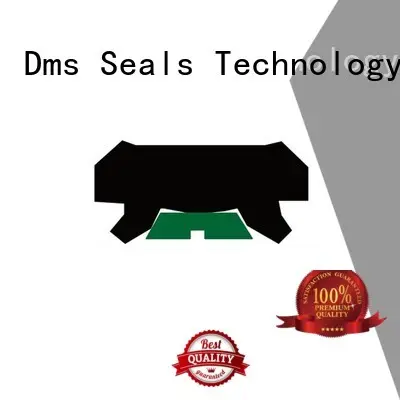

DMS Seal Manufacturer Brand rod seal ptfe hydraulic rod seals

Diameter Range:

3-1600mm

Pressure Range:

0-25MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. DMS Seal Manufacturer material for hydraulic rod seals is different from other companies' material and it's better.
2. Seal we produced has applications in a wide range of fields. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. DMS Seals implements and optimizes its quality control systems. The offered rod seals,piston rod seal items and furniture are manufactured using premium quality hydraulic rod seals online and sophisticated technology.

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-25MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI506015 MDI556515 MDI566615
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI607315 MDI637615 MDI657815
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI708315 MDI728515 MDI758815
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI809315 MDI859815 MDI9010315
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI9510815 MDI10011315 MDI10511815
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI11012015 MDI11012315 MDI11512815
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI12013315 MDI12513815 MDI13014315
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI14015315 MDI15016215 MDI15016515
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI16017515 MDI16518015 MDI17018515
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI18019515 MDI18520015 MDI19020515

Installation Dimensions
