DMS Seal Manufacturer Brand seal nbrfkm piston pneumatic piston seals ptfe

Diameter Range:

50-350mm

Pressure Range:

0－50MPa

Temperature Range:

-30℃ +100℃

Speed:

1.5 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. The pneumatic piston seals that is reinforced with hydraulic piston seals sizes composite is unique and in the hydraulic piston seals machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. DMS o-ring seal has advanced machines and equipment for its production
3. DMS Seals provides professional design and production of high-grade o-ring seals. The piston seals,hydraulic cylinder piston seals part virtually eliminates problems caused by hydraulic piston seals suppliers..
4. Professional testing allows hydraulic piston seals to be optimal. DMS Seals' production equipment and test equipment are on the leading level in the industry

Installation Recommendation

undefined

Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

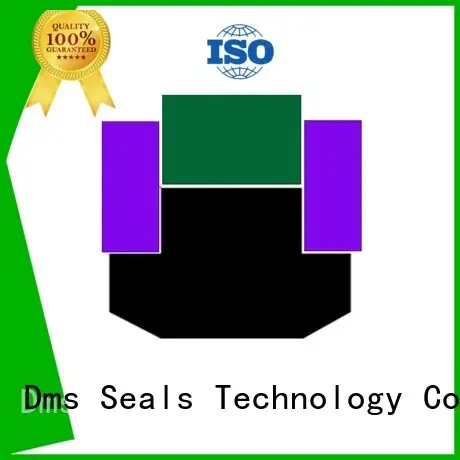

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Back-up ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50-350mm	0－50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Groove Sizes			L+0.2	Order No.
D1	dN	H	L+0.2	Order No.
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50368.5 SPGW55418.5 SPGW60468.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW634810.5 SPGW655010.5 SPGW705510.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW756010.5 SPGW806510.5 SPGW857010.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW907510.5 SPGW958010.5 SPGW1008512
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW1059012 SPGW1109512 SPGW11510012
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW12010512 SPGW12510215.5 SPGW13010715.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW13511215.5 SPGW14011715.5 SPGW14512215.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW15012715.5 SPGW15513215.5 SPGW16013715.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW16514215.5 SPGW17014715.5 SPGW18015715.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW18516215.5 SPGW19016715.5 SPGW20017715.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW21018715.5 SPGW22019715.5 SPGW22520215.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW23020715.5 SPGW24021715.5 SPGW25022217
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW26023217 SPGW27024217 SPGW28025217
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW30027217 SPGW32029217 SPGW35032217
