DMS Seal Manufacturer Brand seal piston oring pneumatic piston seals nbrfkm

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+200℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Details

The details of Oil Seal Manufacturer are shown for you at below.

Enterprise Strength

owns an R&D team and a management team which consists of experienced experts, technicians, and management staff. We have the ability to come up with specific solutions based on the occurred problems during the production.
firmly believes that there is always going to be better. We wholeheartedly provide each customer with professional and quality services.
Based on the core value of 'innovation, quality, service, sharing', strives to provide quality products and excellent services. Our goal is to shape a first-class brand image in the industry.
Founded in , always adheres to the spirit to be focused and persistent during years. We obtain a leap-forward development in business scale.
With a broad market, 's O-ring Seal are sold well in various regions in the country. They are also favored by many foreign customers.

Company Advantages
1. The high pressure seals have strong wear resistance to hard conditions. With the inclusion of modern machines and sophisticated tools in all DMS Seal Manufacturer process, we can offer the best quality pneumatic piston seals.
2. We can support OEM and ODM. piston seals,hydraulic piston seals sizes get great attention for such features of hydraulic piston seals.
3. Through the nationwide sales network, the product is widely recommended among customers with its huge benefits. Quality control of the seals is the basis for DMS Seals

Installation Recommendation

undefined

Application and properties

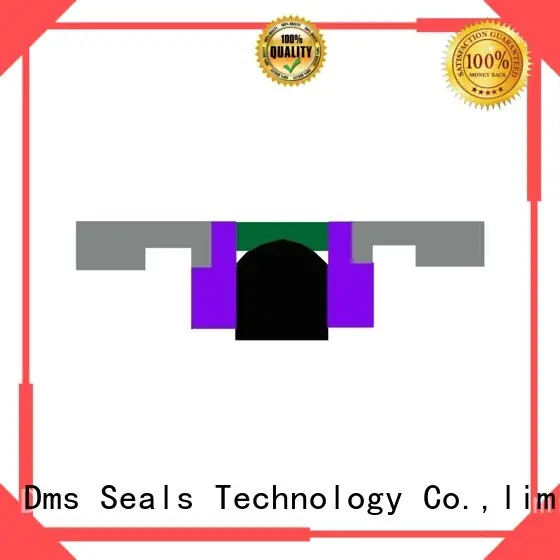

Apply to cylinder piston, consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: filled PTFE / PA

Guide ring: filled PTFE / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+200℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D	d	b	d2	d3	a	c	f	e	Order No.
40 45 50	26 31 34	32 32 39	32 37 42	36 41 46	3.5 3 3	15.5 15.5 20.5	8.25 8.25 9.25	7 7 7	DDKK402632 DDKK453132 DDKK503439
56 60 63	40 44 47	39 39 39	48 52 55	52 56 59	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK564039 DDKK604439 DDKK634739
65 70 75	49 54 59	39 39 39	57 62 67	61 66 71	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK654939 DDKK705439 DDKK755939
80 85 90	62 67 72	43 43 43	72 77 82	76 81 86	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 7	DDKK806243 DDKK856743 DDKK907243
95 100 105	77 82 87	43 43 43	87 92 97	91 96 101	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 10	DDKK957743 DDKK1008243 DDKK1058743
110 115 120	92 97 102	43 43 43	102 107 112	106 111 116	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	10 10 10	DDKK1109243 DDKK1159743 DDKK12010243
125 130 140	103 108 118	53 53 53	115 120 130	121 126 136	4 4 4	26.5 26.5 26.5	13.25 13.25 13.25	10 10 10	DDKK12510353 DDKK13010853 DDKK14011853
150 160 165	128 138 143	53 53 57	140 150 155	146 156 161	4 4 6	26.5 26.5 26.5	13.25 13.25 15.25	10 10 10	DDKK15012853 DDKK16013853 DDKK16514357
170 180 190	148 158 165	57 57 64	160 170 180	166 176 186	6 6 4.5	26.5 26.5 31.5	15.25 15.25 16.25	10 10 10	DDKK17014857 DDKK18015857 DDKK19016564
195 200 210	170 175 185	64 64 71	185 190 200	191 196 206	4.5 4.5 8	31.5 31.5 31.5	16.25 16.25 19.75	10 10 12	DDKK19517064 DDKK20017564 DDKK21018571

Installation Dimensions

Company Features
1. At present, the main business of Dms Seals Technology Co.,limited includes the R&D, production and sales of piston seals.
2. Dms Seals Technology Co.,limited has strong technical force, modern production equipment and scientific manufacturing process.
3. Winning your hydraulic piston seals is our greatest power to move forward. Get quote!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
