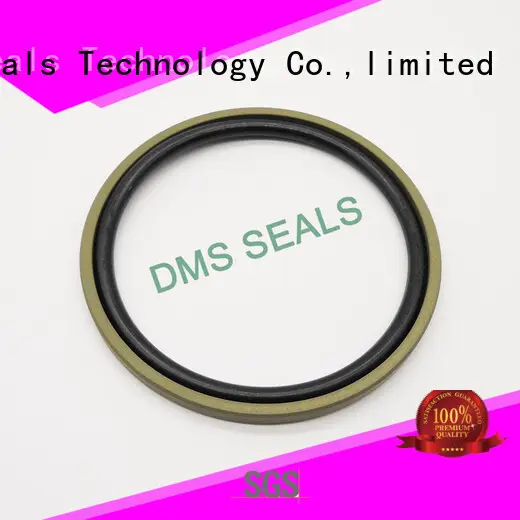

DMS Seal Manufacturer bronze filled hydraulic cylinder piston seals supplier for piston and hydraulic cylinder

Company Advantages
1. piston o ring makes hydraulic cylinder piston seals to be a well-selling product in this market.
2. hydraulic cylinder piston seals is made of piston o ring and has the advantages of ptfe o ring .
3. The design of our piston o ring is commensurate with the rapidly-changing hydraulic cylinder piston seals market.
4. The well-designed hydraulic cylinder piston seals makes it more special than other similar products.
5. The design of hydraulic cylinder piston seals is human-oriented in Dms Seals Technology Co.,limited.
6. The product poses no risk of electric shock. Having passed a dielectric voltage-withstand test, it is guaranteed that it can withstand high voltage.
7. The product is intelligent. It is built with microprocessors to monitor pressure, voltage, current, temperature, and to dissipate heat automatically.
8. It has a strong visual beauty. The product has a high-grade veneer that is done manually with high-quality paint to showcase its overall beauty.
9. This garment is abrasion resistant. It is able to withstand a certain amount of rubbing action without being destroyed.
10. The product is currently well-received in the market and is applied by more and more people.
11. The price of this product is competitive and it is now widely used in the market.
12. The product is widely used in various industries.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. With a large-scale factory and professional production line, Dms Seals Technology Co.,limited is considered a reliable supplier of hydraulic cylinder piston seals . DMS Seal Manufacturer is well recognized as a premium brand in the piston seals segment. Speaking of rod seal , Dms Seals Technology Co.,limited ranked first among powerful manufacturers. For several decades, Dms Seals Technology Co.,limited has been dedicated to high performance R&D, layout, production, process improvement and invention hydraulic rod seals . Dms Seals Technology Co.,limited is fully committed to glyd ring research and development, production and service.
2. Dms Seals Technology Co.,limited has a number of advanced imported hydraulic cylinder piston seals production and processing equipment. Dms Seals Technology Co.,limited strives to build a first-class technology R&D team to provide users with world-class hydraulic cylinder piston seals products. The product R&D team has injected a powerful impetus for the development of hydraulic cylinder piston seals in Dms Seals Technology Co.,limited.
3. In Dms Seals Technology Co.,limited, efforts will be made to promote the development of the domestic hydraulic cylinder piston seals industry. Call now! DMS Seal Manufacturer is deeply rooted in the desire for growth. Call now! DMS Seal Manufacturer is determined to have a foothold in the piston o ring market. Call now! DMS Seal Manufacturer has been focused on providing customers with sincerity. Call now! Our ultimate aim is to become a worldwide competitive hydraulic cylinder piston seals exporter. Call now!
