DMS Seal Manufacturer bronze hydraulic cylinder piston seals piston manufacturer 1

DMS Seal Manufacturer bronze hydraulic cylinder piston seals piston manufacturer 2

DMS Seal Manufacturer bronze hydraulic cylinder piston seals piston manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. DMS Seal Manufacturer hydraulic cylinder piston seals is designed by top designers. The product has attracted appearance and impresses most customers in the market. We can support OEM and ODM
2. With the advanced equipment, we concentrate on the quality of the products. The high pressure seals have strong wear resistance to hard conditions
3. Multiple times of tests and modifications, the product is guaranteed to be of the highest quality. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
4. Quality is the top priority in our business strategy. DMS Seals implements and optimizes its quality control systems

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

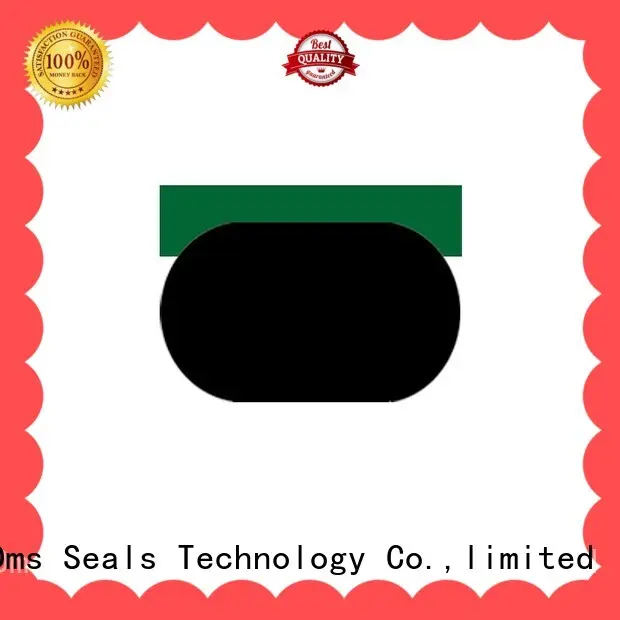

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions

Company Features
1. With rigorous quality management system supported, DMS Seal Manufacturer ensures that the quality of hydraulic piston seals .
2. DMS Seal Manufacturer puts piston seals first all the time. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
