DMS Seal Manufacturer bronze o-ring seal manufacturer for light and medium hydraulic systems

Company Advantages
1. DMS Seal Manufacturer hydraulic cylinder piston seals has to go through a wide range of production stages. These stages cover research based on feet shape, CAD design, material cutting, stamping, sewing, and stitching, and assembly.
2. DMS Seal Manufacturer hydraulic cylinder piston seals has to pass a series of quality inspections. It needs to be checked with regard to smoothness, softness, splicing trace, cracks, and flex resistance.
3. The safety of DMS Seal Manufacturer hydraulic cylinder piston seals must meet relevant quality regulations. They include GB18401-2010 National Basic Safety Technical Specifications for Textile Products and GB5296.4-1998 Instruction Use for Textiles and Garments.
4. The fabrics used in DMS Seal Manufacturer o-ring seal comply with industrial standards. Their quality meets the regulations stipulated in FZ/T 01053 and GB/T 29862.
5. The design of DMS Seal Manufacturer hydraulic cylinder piston seals is dominated by a clean-cut and fashion style. It is carried out designers who have a highly individualized vision on fashion and are experienced in interpreting the fashion trend.
6. The product is highly resistant to stains. Its surface has been polished to be smooth, which makes it not easy to hide dust and dirt.
7. The product features enough hardness and toughness. The primary seal part is usually made of welded metal which has strong hardness.
8. The product features durability. Its PCB, connector, and housing are all made of high-performance materials which are highly resistant to aging.
9. It is endowed with reliable colorfastness. We make it compulsory to identify and eliminate any potential risks of colorfastness prior to the production.
10. DMS Seal Manufacturer's international recognition, popularity and reputation are continued to increase.
11. The application prospect of the product is promising thanks to high customer satisfaction.
12. The product is well recognized by customers in the market.
13. There is a very broad development prospect of this product owing to these features.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

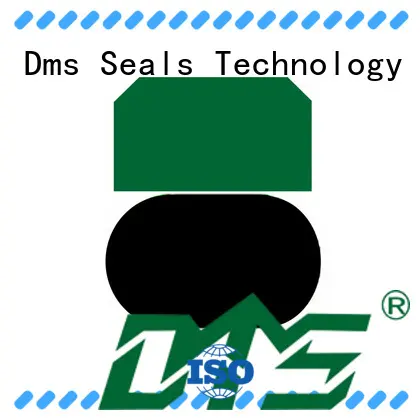

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited's main business is the development, manufacture and sale of hydraulic cylinder piston seals . With the expanding of o-ring seal, DMS Seal Manufacturer has caught more and more attention of the customers. Dms Seals Technology Co.,limited has piston seals production sites all over the world to meet local needs. Dms Seals Technology Co.,limited is a flagship hydraulic piston seals enterprise in China with integrated production, financial management, and sophisticated management.
2. In view of the interests of customers, DMS Seal Manufacturer is able to ensure the durability of o-ring seal. Dms Seals Technology Co.,limited pays high attention to technology innovation and have gained achievements. In order to meet the needs of products developing, professional engineers are equipped to ensure the quality of o-ring seal.
3. Dms Seals Technology Co.,limited adheres to the pursuit of long-term cooperation with customers. Get quote! Dms Seals Technology Co.,limited is committed to ensuring that our o-ring seal will bring real value to our customers. Get quote! The DMS Seal Manufacturer brand is designed to provide quality service to our customers. Get quote!
