DMS Seal Manufacturer bronze pneumatic rod seals to high and low speed1

Company Advantages
1. DMS Seal Manufacturer pneumatic rod seals is carefully designed. This is considered by our designers who take the color, style and construction. The high pressure seals have strong wear resistance to hard conditions
2. DMS Seal Manufacturer has been cooperating with lots of professional manufacturers in China. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. The product stands out for its short response time. Adopting a high-performance processor, it can respond quickly without any delay. We have developed solutions of the sealing of special working condition
4. The product is corrosion resistance in extreme conditions. Its parts have been electroplated with a layer of metal membrane to resist the chemical influence. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

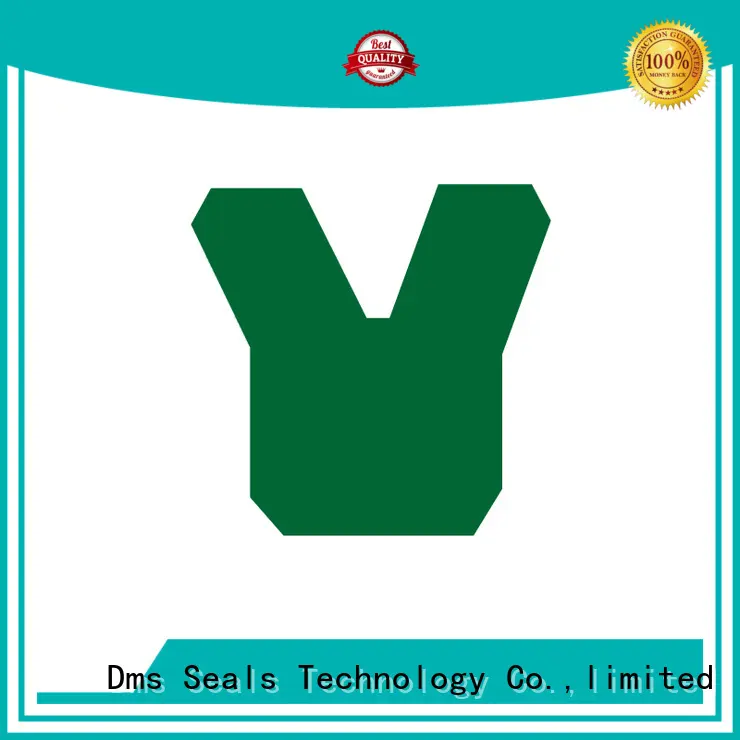

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Studying the application of independent technological innovation will contribute to the dominant position of DMS Seal Manufacturer.
2. We will handle production wastes in a proper and reasonable way. We will ensure the wastes to be stored, transported, treated, or discharged in an environmentally appropriate manner.
