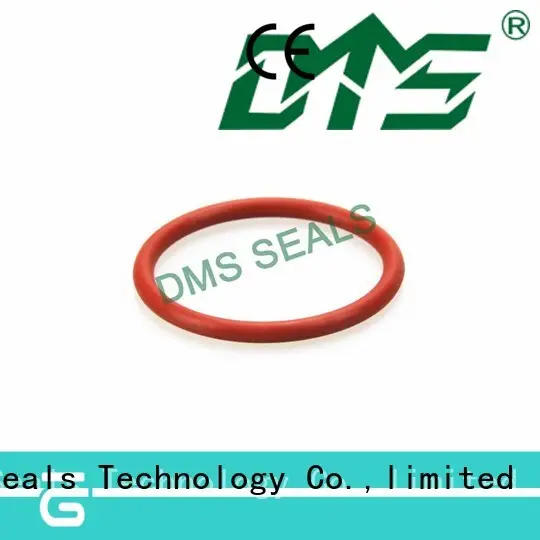

DMS Seal Manufacturer buna n o ring seal manufacturer for sale

Company Advantages
1. DMS Seal Manufacturer o ring seal manufacturer is manufactured by high-grade raw materials that are procured from the reliable vendors.
2. DMS Seal Manufacturer metric wiper seal is designed using excellent and quality materials.
3. DMS Seal Manufacturer metric wiper seal is manufactured by our workers with a good understanding of the high quality raw materials.
4. DMS Seal Manufacturer metric wiper seal is manufactured using exceptional grade raw materials and sophisticated technology.
5. DMS Seal Manufacturer metric wiper seal is produced to meet the quality standards as per the customer demands.
6. The product excels at meeting and exceeding quality standards.
7. Our professional and responsible quality control team ensures that products meet industry standards.
8. Our quality control personnel are responsible for the continuous small changes to maintain production in the specified parameters and ensure product quality.
9. Our experienced quality inspectors have carefully tested the product in all respects, such as its performance, durability, and so on, in accordance with the international standards.
10. As a result of the implementation of a strict quality management system, product quality has been improved.
11. With precise strategic positioning and excellent implementation efficiency, Dms Seals Technology Co.,limited has achieved sustained high-speed growth.
12. Customers can inform us their any reasonable improvements for our outer packing for o ring seal manufacturer .
13. After-sale service will be provided to help our customers during using o ring seal manufacturer .

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited is a large-scale manufacturer which is devoted to promoting o ring seal manufacturer industry. Dms Seals Technology Co.,limited has been committed to the o ring kit manufacturer field for many years and is highly recognized. DMS Seal Manufacturer is a well-known company with many fans at home and abroad. Dms Seals Technology Co.,limited is a senior company classified as producing o-ring seal .
2. We are supported by a team of professionals. They are continuously developing and improving manufacturing methods to ensure the highest possible level of value, quality, and products to meet our customers' needs. We have a first-class product design elite team, high-quality R&D staff, technicians and skillful workers. These teams all have years of experience in this field. They are qualified to give technical guidance or product solutions to clients. We own our production workshop. Newly introducing many cutting-edge manufacturing facilities, the workshop lays a solid foundation for self-development and production, and more than 80% of the processes are independently completed in this workshop. We have a team specializing in product development. Their expertise enhances the planning of product optimization and process design. They effectively coordinate and implement our production.
3. DMS Seal Manufacturer endeavors to be one of the few professional O Ring Manufacturer supplier with its own R&D ability. Check now! DMS Seal Manufacturer has been developing its enterprise culture to enhance the customer service. Check now! Dms Seals Technology Co.,limited will adhere to new product and new technology research and development. Check now!
