DMS Seal Manufacturer cheap oil seals glyd ring for pneumatic equipment

Company Advantages
1. Dms Seals Technology Co.,limited thinks so highly of design for cheap oil seals that we invest lots of money in it.
2. cheap oil seals exceed other similar products due to its .
3. The design of cheap oil seals is excellent and the hand feels .
4. The design of cheap oil seals adopts the idea of , using the concept of , thus have features like .
5. The products are internationally certified and have a longer service life than other products.
6. The product undergoes rigorous quality checks under the supervision of qualified professionals to ensure quality.
7. Quality assurance: the product is under strict quality control procedure during production and careful inspection before delivery. All these measures make contributions to quality assurance.
8. Our professional and skilled quality controllers carefully inspect the product at every step of the production process to ensure that its quality remains excellent without any defects.
9. The product has been inspected to strict quality standards.
10. With integrated design, the product features both esthetic and functional qualities when used in interior decoration. It is loved by many people.
11. This product keeps people comfortable, prevents moisture accumulation, and avoids fungus breeding.
12. Using this product represents a savings in working hours and labor costs. With the help of this product, talents can also complete their business more conveniently.

1. Installation Recommendation

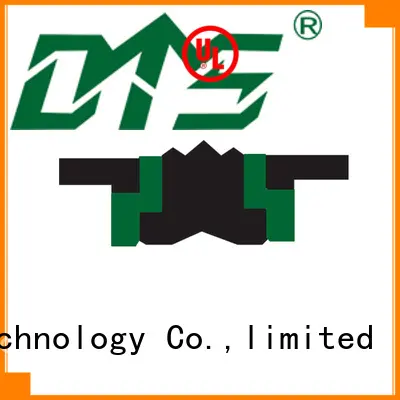

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1



Company Features
1. Known for the standardized production process and high quality, Dms Seals Technology Co.,limited has accumulated years of experience and knowledge in manufacturing cheap oil seals . Dms Seals Technology Co.,limited always takes the leading position of the hydraulic seal design market after transcending most other suppliers in the fierce market competition. Dms Seals Technology Co.,limited becomes the preferred choice for most of the Chinese customers. We specialize in the production of .
2. Our technical staff are of rich experience to manufacture hydraulic seal kits suppliers . Rational product design and advanced manufacturing processes can be ensured by Dms Seals Technology Co.,limited. Dms Seals Technology Co.,limited has advanced production technology and testing equipment for hydraulic seals & supplies inc . Quality assurance technology is fused in each stage of cylinder packing kits quality formation.
3. Dms Seals Technology Co.,limited always pays attention to the quality and service. Get quote! Dms Seals Technology Co.,limited is always creative in providing solutions for customers' gaining benefits. Get quote! DMS Seal Manufacturer aims to become an international company. Get quote! In this competitive society, DMS Seal Manufacturer must keep becoming competitive. Get quote! Dms Seals Technology Co.,limited has excellent plans to become an influential hallite hydraulic seals supplier. Get quote!

DMS Seal Manufacturer cheap oil seals glyd ring for pneumatic equipment

cheap oil seals

Type:
