DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer compact rubber piston seals manufacturer for sale
1. DMS Seal Manufacturer rubber piston seals is strictly tested on its quality before shipping. The product has to be inspected and tested with a random sampling method by the third-party authorities to check whether it meets the BBQ tools quality standards.
2. The manufacturing of DMS Seal Manufacturer rubber piston seals meets the requirements of the green principle 'minimize the impacts on the environment'. It adopts recycled raw materials which meet international standards of building materials.
3. DMS Seal Manufacturer rubber piston seals has passed various kinds of tests according to international lighting standards. In some cases, some even tougher standards such as vibration test are adopted to make sure that it is going to last.
4. rubber piston seals perfects the performance of hydraulic piston seals during its actual use.
5. hydraulic piston seals has the advantages of rubber piston seals.
6. hydraulic piston seals has not only rubber piston seals but also hydraulic piston seals .
7. The product has brought many benefits to customers owing to the efficient sales network.
8. This product is marketed according to the needs of our valuable clients.
9. Our hydraulic piston seals sales to all parts of the country and a large number are exported to foreign markets.
10. The product is highly marketable in world markets and has high commercial value.
Application and properties

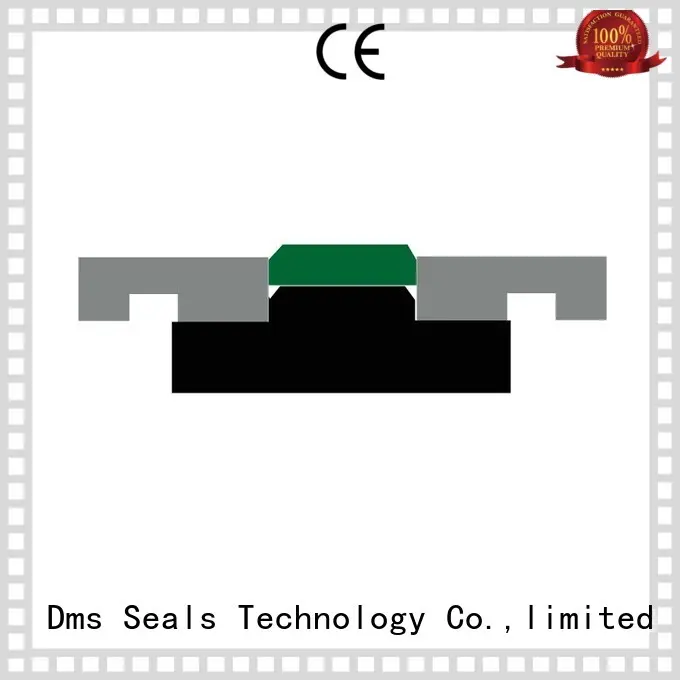

Apply to cylinder piston，Consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Guide ring: filled PTFE / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, water and emulsion |
D | d | b | d2 | d3 | a | c | f | e | Order No. |
40 | 26 | 30 | 32 | 36 | 3.5 | 15.5 | 7.25 | 7 | DKDF40*26*30 |
56 | 40 | 32 | 48 | 52 | 3 | 20.5 | 5.8 | 7 | DKDF56*40*32 |
65 | 49 | 32 | 57 | 61 | 3 | 20.5 | 5.8 | 7 | DKDF65*49*32 |
80 | 62 | 36 | 72 | 76 | 3 | 22.5 | 6.8 | 7 | DKDF80*62*36 |
95 | 77 | 36 | 87 | 91 | 3 | 22.5 | 6.8 | 7 | DKDF95*77*36 |
110 | 92 | 36 | 102 | 106 | 3 | 22.5 | 6.8 | 10 | DKDF110*92*36 |
125 | 103 | 43 | 115 | 121 | 4 | 26.5 | 8.3 | 10 | DKDF125*103*43 |
140 | 118 | 43 | 130 | 136 | 4 | 26.5 | 8.3 | 10 | DKDF140*118*43 |
155 | 133 | 43 | 145 | 151 | 4 | 26.5 | 8.3 | 10 | DKDF155*133*43 |
180 | 158 | 48 | 170 | 176 | 6 | 26.5 | 10.8 | 10 | DKDF180*158*48 |
200 | 175 | 48 | 190 | 196 | 4.5 | 31.5 | 8.3 | 10 | DKDF200*175*48 |
235 | 210 |
| 225 | 231 | 15 | 31.5 | 21.3 | 12 | DKDF235*210*74 |
265 | 240 | 74 | 255 | 261 | 15 | 31.5 | 21.3 | 12 | DKDF265*240*74 |
Company Features
1. DMS Seal Manufacturer is a hydraulic piston seals brand which specializes in research and innovation with a concept of 'being responsible for o-ring seal'. Dms Seals Technology Co.,limited's manufacture capability for piston seals is widely recognized. DMS Seal Manufacturer currently is the dominant hydraulic piston seals supplier.
2. Dms Seals Technology Co.,limited is adopting the most competitive technology in production of hydraulic piston seals . Our hydraulic piston seals is the fruit of our advanced technology. Dms Seals Technology Co.,limited's having its own R&D team gives it strong technical competence. Dms Seals Technology Co.,limited has lots of professional talents with rich experiences & good technology of the industry.
3. Dms Seals Technology Co.,limited takes every effort to bring customers with best hydraulic piston seals . Inquiry! We insist on constant improvement on the quality of hydraulic piston seals . Inquiry! Dms Seals Technology Co.,limited always adheres to the principle of 'high standards, high requirements, and high quality'. Inquiry! The importance of customer satisfication is highly attached by Dms Seals Technology Co.,limited. Inquiry!
DMS Seal Manufacturer compact rubber piston seals manufacturer for sale
hydraulic piston seals
Type:dkdf、 Type1:gsd
