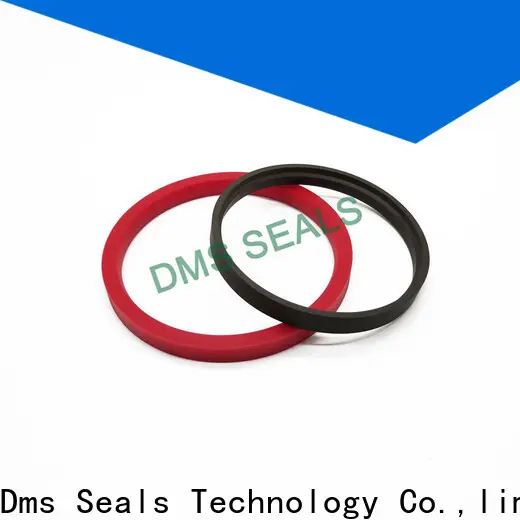

DMS Seal Manufacturer custom epdm seals suppliers supplier for piston and hydraulic cylinder

Company Advantages
1. DMS Seal Manufacturer is manufactured under a range of steps. It needs to be designed, molded, shaped and finished on the basis of collection and analysis of different foot types.
2. DMS Seal Manufacturer epdm seals suppliers is carefully designed with many principles kept in mind. These principles are unity, balance, proportion, emphasis, rhythm, and so forth.
3. DMS Seal Manufacturer is scientifically designed. Basic knowledge such as Mechanics of Machines, Mechanics of Materials, Fluid Mechanics, Thermodynamics is used in its manufacture.
4. A broad range of performance tests for DMS Seal Manufacturer has been conducted. They are anti-bacterial testing, abrasion resistance testing, moisture-wicking, rigidity, and strength testing.
5. DMS Seal Manufacturer has a satisfactory design. The design is practiced in relation to the level of choice in styles, colors, fitness, shape, and the suitability of the product for people.
6. This product has wear comfort. Elements affecting comfort which involving human physiology and the role of clothing are well-arranged its design.
7. This product stands out for its breathability. Its materials used provide a ventilated environment that would not allow the heat and moisture to accumulate.
8. The product is mold resistant. It is treated with anti-fungicide paper which creates an antibacterial environment, so as to restrain the growth of coliform, spore, and heterotrophic bacterium.
9. This product has the required bonding. It has been tested for the peel strength of adhesive bonds between constructions.
10. This product features high-quality seams. The raw edges of the seam have been covered, which can help protect and keep the edges from being damaged or stressed.
11. Dms Seals Technology Co.,limited ensures the effective operation of the quality control system.
12. The service and epdm seals suppliers products of Dms Seals Technology Co.,limited are all designed to satisfy the demand of its customers.
13. epdm seals suppliers has obtained unanimous favorable comments in domestic market.
14. The high quality epdm seals suppliers contributes to the spreading sales network of DMS Seal Manufacturer.
15. Mature sales network of DMS Seal Manufacturer will bring more convenience for customers.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5

Company Features
1. Dms Seals Technology Co.,limited is a professional epdm seals suppliers manufacturer. Abundant experience and strong manufacturing ability have enabled our absolute leading position. Drawing from years of experience, Dms Seals Technology Co.,limited has been grown into one of the most powerful manufacturers in China. We are an expert in design, manufacture, and sales. Being recognized as a reliable manufacturer of , Dms Seals Technology Co.,limited is expected to be one of the leading companies in the industry. Dms Seals Technology Co.,limited is identified as a reliable manufacturer of . We have been focusing on production and marketing.
2. It is the application of that makes glyd ring high quality. Dms Seals Technology Co.,limited has sophisticated technologies for developing water pump seals manufacturers . High quality rubber seal round is provided by DMS Seal Manufacturer processed by highly advanced technology.
3. We have established a strategic goal based on the industry. We would like to integrate more kinds of technologies into our business, such as advanced IT and intelligence, hoping to help us launch new products or increase gross revenue. We continuously improve the ways we serve and satisfy them to create long-term value. We aim to perform with precision to earn our customers' trust. Delivering high-quality products is critical to our purpose. Our focus on quality excellence includes continuously enhancing our standards, technology, and training for our people, as well as learning from our mistakes.
