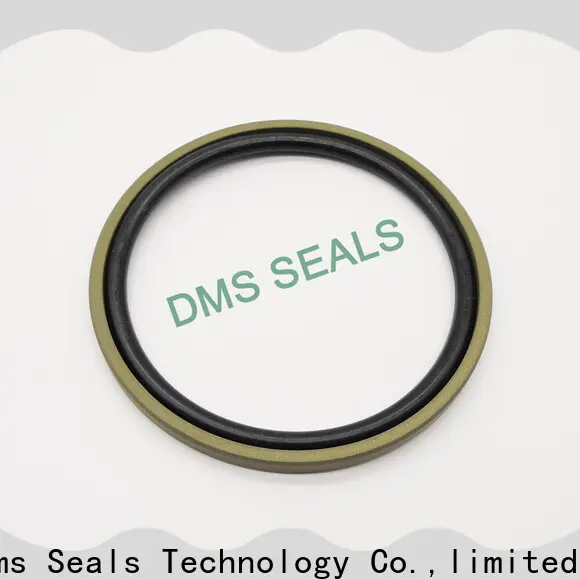

DMS Seal Manufacturer custom hydraulic seals catalogue o ring for piston and hydraulic cylinder 1

DMS Seal Manufacturer custom hydraulic seals catalogue o ring for piston and hydraulic cylinder 2

DMS Seal Manufacturer custom hydraulic seals catalogue o ring for piston and hydraulic cylinder

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The production of DMS Seal Manufacturer adopts excellent quality raw materials that are obtained from the licensed vendors of the market. DMS Seals implements and optimizes its quality control systems
2. Most costumers considered hydraulic seals catalogue are and worth of trust. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
3. By discarding the dross and selecting the essential, our hydraulic seals catalogue has been successful in its . The high pressure seals have strong wear resistance to hard conditions
4. can be seen in this hydraulic seals catalogue which can . As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

1. Installation Recommendation

2. Installation Sizes

Bore Diameter D_N H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d₁ h9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
8-14.9	15-39.9	-	D_N-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	D_N-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	D_N-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	D_N-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	D_N-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	D_N-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	D_N-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	D_N-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N H9

d₁ h9

L₁+0.2

3.1

5.1

7.1

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

9.1

10.1

7.5

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

19.1

16.5

17.5

2.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

20.5

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

22.5

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62
