DMS Seal Manufacturer custom oil seals for pressure work and sliding high speed occasions

Company Advantages
1. The design of DMS Seal Manufacturer takes many elements into consideration. The style, design, the model, materials are all the prime factors that prompt the designer to take due importance. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. We have been leading the new fashion of custom oil seals industry, and have brought to every user. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. The product has a robust structure. It is finely constructed to form a strong bond, and the assembled parts are handled perfectly. We have developed solutions of the sealing of special working condition
4. The product has the desired safety. It does not contain any harmful, toxic, and skin-irritant chemicals which may cause skin allergies. DMS Seals' production equipment and test equipment are on the leading level in the industry

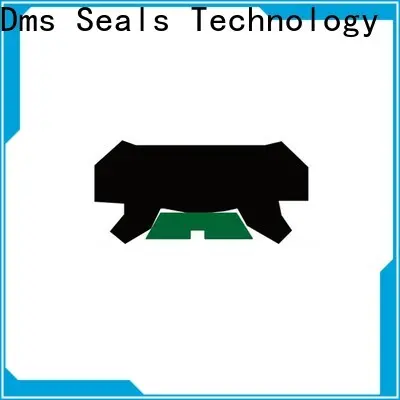

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. DMS Seal Manufacturer has been specialized in producing custom oil seals for years.
2. Our factory boasts a high-efficient production line that allows for material selection, machining, and inspection of finished products. This line can operate 24 hours a day to guarantee the output.
3. In Dms Seals Technology Co.,limited, satisfaction from our customers is the most important thing. Please contact us!
