DMS Seal Manufacturer Custom piston rod seal with nbr or pu for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seal Manufacturer is developed with cutting-edge technology in compliance with set industry norms.
2. DMS Seal Manufacturer is manufactured using high quality raw materials which are safe and eco-friendly.
3. DMS Seal Manufacturer piston rod seal is designed to provide customers with choice and flexibility.
4. Innovation-oriented design: DMS Seal Manufacturer is innovatively designed by a team of professional designers. They are full of innovative ideas and are willing to embrace the changing market demands.
5. DMS Seal Manufacturer piston rod seal , with comprehensive functionality and high performance, is developed by top-class R&D team. The team has spent a lot time developing the new function of this product.
6. The product is highly resistant to bacteria. As the surface is non-porous. it doesn't allow any dirt or spills to sit and serve as a breeding site for germs.
7. The product is stable in powering. It can absorb the energy-intensive sunlight, ambient light, and some artificial light before converting the energy into electricity.
8. The product has good environmental adaptability. It is not easily affected by vibration, shock, bump, extrusion, dropping, and temperature.
9. Thanks to its many advantages, it is certain that the product will have a bright market application in the future.
10. The product fits the requirements of customers and has broad market potential.
11. According to feedback, the product has achieved high customer satisfaction.
12. The product has received much attention since its launch and is believed to be more successful in the future market.
13. The product meets customer expectations and is now popular in the industry with broad market prospects.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

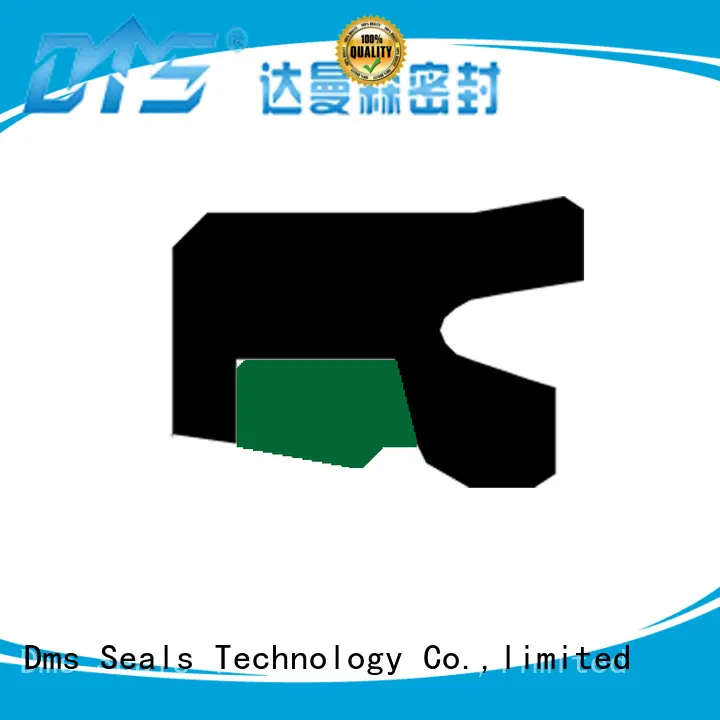

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13
