DMS Seal Manufacturer Custom piston t seal Suppliers for sale

Company Advantages
1. DMS Seal Manufacturer piston t seal will be tested strictly according to requirements. Its body frame, engine, mechanical components, and other parts will be tested to meet the highest safety and efficiency standards.
2. A variety of processing methods are used in DMS Seal Manufacturer production. There are mainly turning, drilling, cutting, grinding, CNC machining and honing.
3. A range of machining workmanship has been adopted in the production of DMS Seal Manufacturer . It will be fabricated under CNC forming milling process, extrusion molding, CNC engraving, machine cutting, and polishing.
4. The materials performance tests of DMS Seal Manufacturer piston t seal have been completed. These tests include fire resistance testing, mechanical testing, formaldehyde content testing, and stability testing.
5. DMS Seal Manufacturer has been tested in many aspects, such as user interface options, display options, additional output options, and environmental parameters.
6. The product is extremely stable and robust due to its high strength aluminum alloy material and stable mechanical structure design.
7. Since the product features high light transmission performance. It is able to deliver light more efficiently to the desired location without any resistance.
8. The product is not subject to electromagnetic interference. Its coated insulation materials are carefully designed to stave off the magnetization.
9. The product features high precision. Made of a CNC machine which features high accuracy, it is not prone to errors.
10. This product is characterized by scratch resistance. Because of the hard surface layer, the sharp objects will not leave scratches on the surface.
11. Due to its significant economic return, the product is now widely used in the market.
12. The product, with many good characteristics, is applicable to various fields.
13. Finding applications in many industries, this product is offered in different sizes and finishes.
14. The product, available at such a competitive price, is highly demanded by the market.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

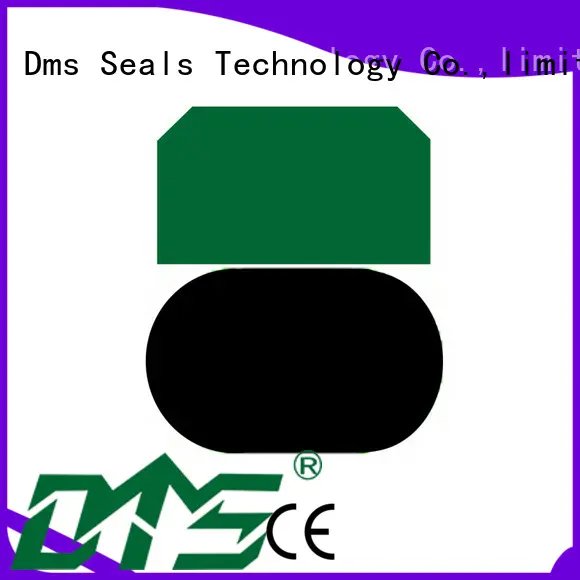

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. As a leading producer and provider of piston t seal , Dms Seals Technology Co.,limited is popular in the global market. Assisted from the high quality employees, DMS Seal Manufacturer enjoys a good reputation among the market. Dms Seals Technology Co.,limited stands out among other manufacturers in the hydraulic packing kits industry. Dms Seals Technology Co.,limited is a leading cylinder oil seal supplier dedicated to manufacturing. Dms Seals Technology Co.,limited is considered to be the competitive manufacturer in the seal pro pistons industry.
2. In recent years, we have gained a stable presence in overseas markets due to the recognized manufacturing competence, mainly in North America, Southeast Asia, and some Europe countries. The plant has a full set of world-class production facilities that are manufactured by developed countries. Thanks to these facilities, we can always deliver products to customers ahead of schedule. Our company is thriving on five continents and in many countries. Our customer service has been practiced and polished through long-standing experience with international partners.
3. One of our main priorities is to generate greater value for our customers and continue expanding the business between us. Our company bears social responsibilities. By reducing lead time and material waste, we have achieved less hazardous byproducts and energy consumption. Sustainability is a crucial part of our company strategy. We focus on the systematic reduction of energy consumption and the technical optimization of manufacturing methods. Our company bears social responsibility. We work with local energy providers that use green energy sources to generate power that is free of carbon emissions and other GHG. We are fully committed to continuously challenging ourselves by improving our service approach, all to achieve our customers' goals. Ask online!
