DMS Seal Manufacturer custom seals gaskets suppliers supplier

Company Advantages
1. DMS Seal Manufacturer is manufactured complying with international standards. It has been certified under CE, UL, GOST, CCC, which proves that it meets safety requirement for the phone users. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. People can benefit a lot from this product. Some customers said compared to eat barbeque at restaurants, doing barbeque food at home is much more cost-effective and healthy. We have developed solutions of the sealing of special working condition
3. The high quality assurance of this product refers to the profession of our QC team. Seal we produced has applications in a wide range of fields
4. It is tested on defined parameters to ensure its reliable performance, longer service life & durability. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience

1. Installation Recommendation

2. Application and properties

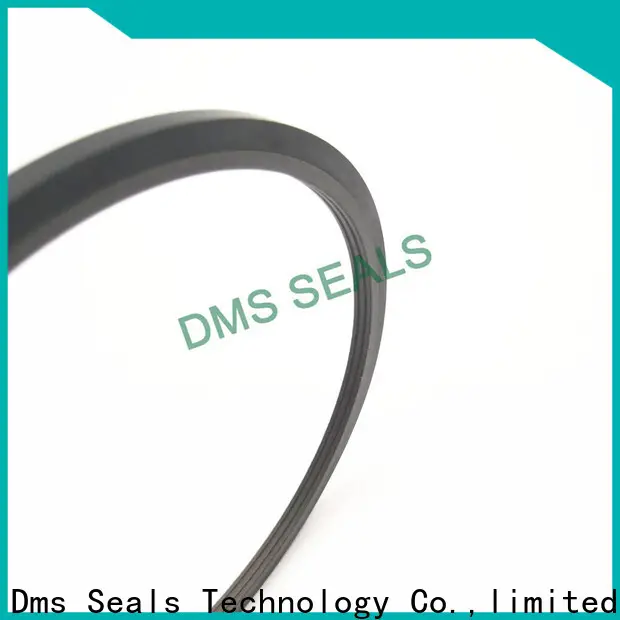

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.



5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. As a large manufacturer of seals gaskets suppliers , Dms Seals Technology Co.,limited owns a wide oversea market. DMS Seal Manufacturer is capable of developing new products by improving technological innovation.
2. DMS Seal Manufacturer earnestly introduces the high-tech machines to produce polycarbonate seal manufacturer .
3. Dms Seals Technology Co.,limited only provides the finest-quality molded rubber seals Regarding plastic seal manufacturer as the duty to develop DMS Seal Manufacturer has been kept in each DMS Seal Manufacturer employee's mind. Get quote!
