DMS Seal Manufacturer Custom shaft wiper seal glyd ring for light and medium hydraulic systems
1. DMS Seal Manufacturer adopts the highest standard for the selection of raw materials.
2. The designs of DMS Seal Manufacturer vary with the changes in the market.
3. DMS Seal Manufacturer shaft wiper seal is designed according to the latest market trend.
4. Every stage of the production process is strictly monitored to ensure the quality of this product.
5. To ensure the high quality, the product has been strictly tested under the quality control standards.
6. In terms of the quality, it is totally enhanced by our QC team by following the quality system.
7. DMS Seal Manufacturer provides the high quality product and guarantee the performance of it.
8. This product is durable enough to stand up to normal use, while also adhering to the end consumer’s design and materials standards.
9. Our customers tell us that this product seems to last forever and that its quality is far superior to any bedding they have previously bought.
10. This product is visually appealing to customers. It has a visual appeal that makes merchandise stand out in a crowd and influences choice decision among substitutes.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties

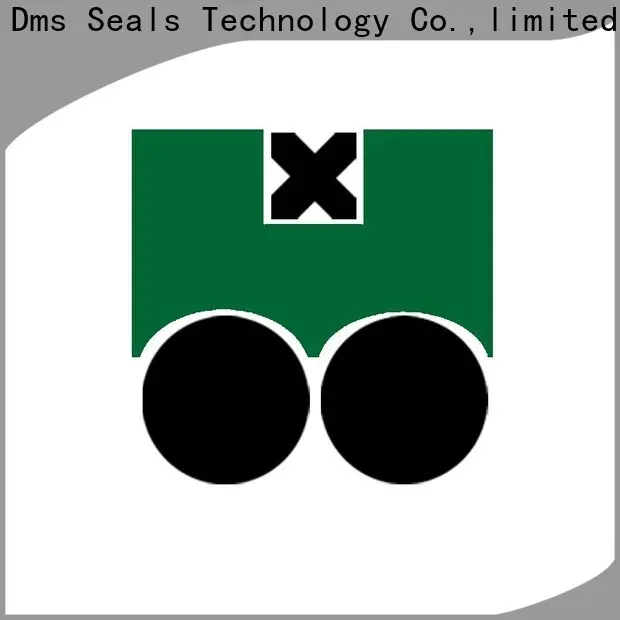

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited has been favored by more and more customers. Dms Seals Technology Co.,limited is a specialized shaft wiper seal manufacture and supplier. As a hydraulic cylinder packing material manufacturer, Dms Seals Technology Co.,limited enjoys superiority in capacity and quality.
2. We are not the only one company to produce hydraulic seals distributors , but we are the best one in term of quality. Our hydraulic gasket sealant is easily operated and need no additional tools. Our technology takes the lead in the industry of hydraulic press seals . Quality speaks louder than number in Dms Seals Technology Co.,limited. Our quality is our company name card in piston t seal industry, so we will do it best.
3. In today’s global competition, DMS Seal Manufacturer's vision is to be a famous brand all over the world as a hydraulic o rings suppliers manufacturing. Check it! Dms Seals Technology Co.,limited has won recognition from more customers due to the excellent service. Check it! DMS Seal Manufacturer works hard for the best interests of our customers. Check it! We will be the first brand in the hydraulic cylinder piston seals industry. Check it! In this competitive society, DMS Seal Manufacturer must keep becoming competitive. Check it!
DMS Seal Manufacturer Custom shaft wiper seal glyd ring for light and medium hydraulic systems
