DMS Seal Manufacturer cylinder packing kits manufacturers for light and medium hydraulic systems 1

DMS Seal Manufacturer cylinder packing kits manufacturers for light and medium hydraulic systems 2

DMS Seal Manufacturer cylinder packing kits manufacturers for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. DMS Seal Manufacturer has a better design. It goes through mock-up construction. And the design is ameliorated based on the test performance of the field mock-up. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. Our technician will make a professional solution with pictures for customers if any malfunction for our cylinder packing kits . DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
3. DMS Seal Manufacturer produces high quality cylinder packing kits that not only look good, but enhance . The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
4. The quality control is highlighted during production, ensuring the stable quality of the product. We have developed solutions of the sealing of special working condition
5. Its production adheres to the principle of Quality First. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

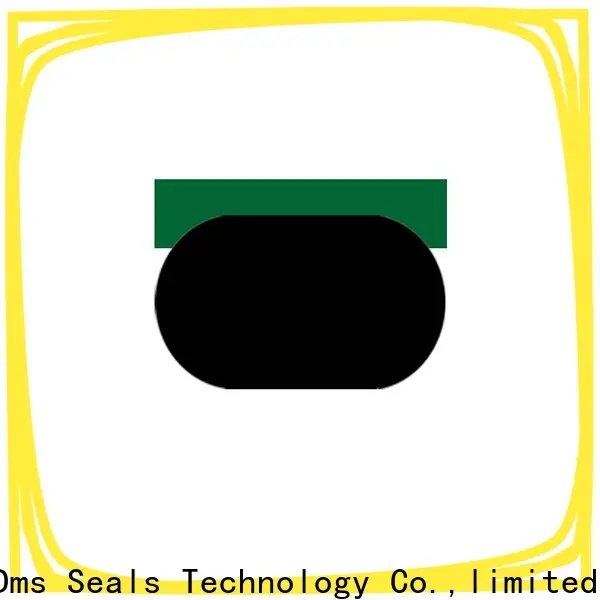

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited became a pioneer in the field of cylinder packing kits by offering a variety of products.
2. Dms Seals Technology Co.,limited brings together cutting-edge R&D and marketing talent in rubber piston rings industry.
3. We continue to improve the quality of and seek better development. Inquire now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
