DMS Seal Manufacturer epdm seals suppliers o ring

Company Advantages
1. DMS Seal Manufacturer is manufactured with a high-tech LCD screen which aims to achieve zero radiation. The screen is developed and treated specially to prevent scratch and wear. The high pressure seals have strong wear resistance to hard conditions
2. The product can meet the diverse requirements of the clients, showing a rather promising application future. Seal we produced has applications in a wide range of fields
3. epdm seals suppliers has outstanding functions of . As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. It's production follows strict quality management criteria based on international standards. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
5. The product is offered after testing against various quality measures. We can support OEM and ODM

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

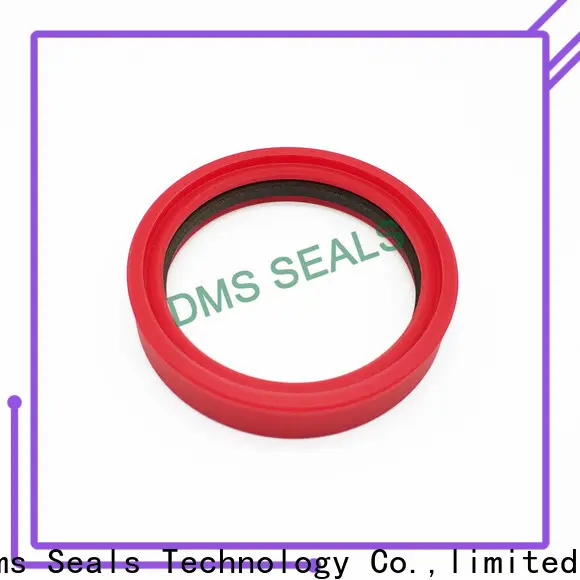

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited is an excellent epdm seals suppliers manufacturer. Dms Seals Technology Co.,limited has introduced several excellent staff.
2. Dms Seals Technology Co.,limited has a scientific management model and well-trained and excellent employees.
3. The technology we have mastered enables us to make progress in the industry, even reaching the international advanced level. To provide valuable, high-quality products and services to meet customer demand is Dms Seals Technology Co.,limited's mission. Get an offer!
