DMS Seal Manufacturer fluoro rubber seal manufacturers to high and low speed

Company Advantages
1. DMS Seal Manufacturer is manufactured using the latest machinery. DMS o-ring seal has advanced machines and equipment for its production
2. The product can make the kitchen more useful and easier to maintain. Using this product will not be a headache when people try to keep the kitchen clean. Seal we produced has applications in a wide range of fields
3. The quality of the product has already been recognized by many international certifications. The high pressure seals have strong wear resistance to hard conditions
4. This product is tested by our quality controllers to assure its high performance at clients. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

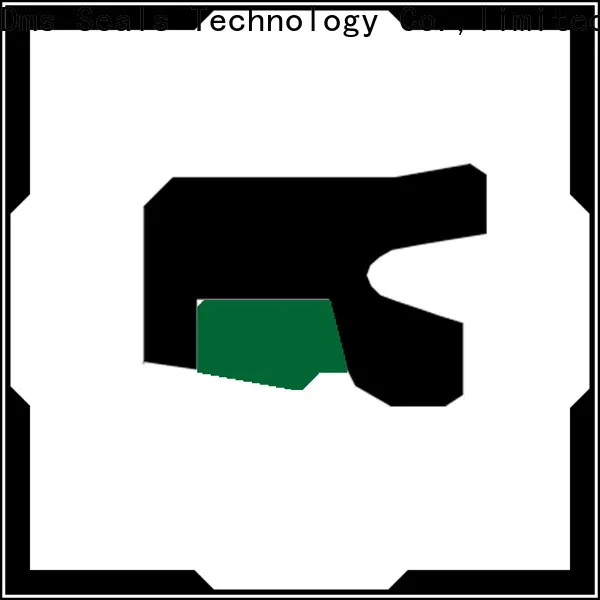

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Based on high quality, Dms Seals Technology Co.,limited is a highly reliable producer for fluoro rubber seal . By establishing a high-tech laboratory, DMS Seal Manufacturer has sufficient scientific and technological strength to create molded seals .
2. As a high-tech company, DMS Seal Manufacturer makes the best case hydraulic seal kits .
3. To better ensure the perfect quality of seal pneumatics inc , DMS Seal Manufacturer has been constantly improving the technology. We are continually looking to improve the efficiency of our entire supply chain. We aim to maximize equipment efficiency while ensuring we maintain high standards of product quality.
