DMS Seal Manufacturer gasket material properties seals for preventing the seal from being squeezed

Company Advantages
1. In terms of its design, DMS Seal Manufacturer is the result of integrating the wisdom of our creative designers. It follows the latest market trend of POS systems. DMS Seals provides professional design and production of high-grade o-ring seals
2. With its enhanced energy conservation, the product can be used at home, workplace, or even in industries. It greatly helps cut spendings. To reduce costs with high-efficiency work is the DMS's purpose
3. This product has excellent impact resistance. Its high compressibility and rebound resilience allow it to work under high-pressure mechanical movement. DMS Seals takes the lead in grasping the development trend of the industry
4. Treating water with this product is safe and harmless. The membrane filter, which features extreme small bore diameter, can filter nearly all harmful particles out. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

1. Application and properties

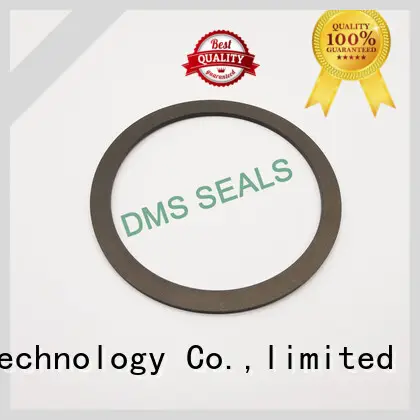

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.

2. Standard materials

Bronze filled PTFE

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +260℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

4. Installation Dimensions

d	D	T	Order No.
40 45 45	50 55 60	3 3 3	BRT40*50*3 BRT45*55*3 BRT45*60*3
50 50 50	60 63 65	3 3 3	BRT50*60*3 BRT50*63*3 BRT50*65*3
55 55 55	65 68 70	3 3 3	BRT55*65*3 BRT55*68*3 BRT55*70*3
60 60 60	70 73 75	3 3 3	BRT60*70*3 BRT60*73*3 BRT60*75*3
60 65 65	80 75 78	3 3 3	BRT60*80*3 BRT65*75*3 BRT65*78*3
65 65 70	80 85 80	3 3 3	BRT65*80*3 BRT65*85*3 BRT70*80*3
70 70 70	83 85 90	3 3 3	BRT70*83*3 BRT70*85*3 BRT70*90*3
75 75 75	85 88 90	3 3 3	BRT75*85*3 BRT75*88*3 BRT75*90*3
75 80 80	95 90 93	3 3 3	BRT75*95*3 BRT80*90*3 BRT80*93*3
80 80 85	95 100 100	3 3 3	BRT80*95*3 BRT80*100*3 BRT85*100*3
85 90 90	105 105 110	3 3 3	BRT85*105*3 BRT90*105*3 BRT90*110*3
95 95 100	110 115 115	3 3 3	BRT95*110*3 BRT95*115*3 BRT100*115*3
100 105 105	120 120 125	3 3 3	BRT100*120*3 BRT105*120*3 BRT105*125*3
110 110 115	125 130 130	3 3 3	BRT110*125*3 BRT110*130*3 BRT115*130*3
115 120 120	135 135 140	3 3 3	BRT115*135*3 BRT120*135*3 BRT120*140*3
125 125 130	140 145 145	3 3 3	BRT125*140*3 BRT125*145*3 BRT130*145*3
130 140 150	150 160 170	3 3 3	BRT130*150*3 BRT140*160*3 BRT150*170*3
160 170 180	180 190 200	3 3 3	BRT160*180*3 BRT170*190*3 BRT180*200*3

Company Features
1. We have established a complete sales network spreading to many countries and regions around the world. We have already got lots of appreciation from customers based on our long-term stable cooperation.
2. We will work hard to move toward a more sustainable manufacturing model. We will try to optimize the materials usage rate so as to reduce resource waste.
