DMS Seal Manufacturer hallite hydraulic seals glyd ring for sale
1. hallite hydraulic seals produced by Dms Seals Technology Co.,limited are mainly composed of materials. The high pressure seals have strong wear resistance to hard conditions
2. The product enjoys a good reputation among our customers in the industry. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. The reliability of the product translates into a low cost of ownership. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
4. The product meets with the industrial safety and quality standards. To reduce costs with high-efficiency work is the DMS's purpose
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |

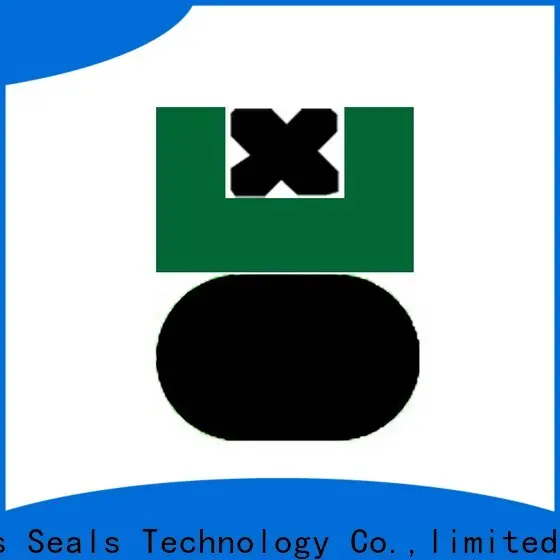

Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. Dms Seals Technology Co.,limited has been a renowned manufacturer in China by providing premium . We continue to expand our product line and services to meet emerging customer needs.
2. Dms Seals Technology Co.,limited strictly controls quality of hallite hydraulic seals from raw material and production process.
3. We have adopted an efficient process to achieve our sustainability goals. We mainly reduce greenhouse gas emissions, energy consumption, solid landfill waste, and water consumption.
