DMS Seal Manufacturer high end hydraulic cylinder packing replacement factory for pressure work and sliding high speed occasions

Company Advantages
1. The production of DMS Seal Manufacturer is paid continuous and in-depth attention to meet customers' needs.
2. The production process of DMS Seal Manufacturer hydraulic cylinder packing replacement has been standardized by using the advanced technology.
3. DMS Seal Manufacturer hydraulic cylinder packing replacement is manufactured from high quality raw material procured from reliable vendors in the industry.
4. The material, design, and production of DMS Seal Manufacturer comply with international regulations.
5. This product works well under harsh conditions. It can be placed in demanding work environments, such as extreme changes in ambient temperature and humidity.
6. The product is highly wear-resistant. Its abrasion-resistant coating can provide a thin layer of lubrication to prevent parts to wear out.
7. Allergens include dust and pollen are unlikely to adhere to the smooth surface of this kind of high-performance products.
8. The product is highly resistant to corrosion. Constructed from heavy-duty metal materials that have passed the salt spray test, it is impervious to chemicals.
9. Our perfect packaging will be conducive to the safety of hydraulic cylinder packing replacement .
10. DMS Seal Manufacturer has been improving the quality of hydraulic cylinder packing replacement while reducing the cost.
11. This product has been considered to perform well in the current field.
12. During the production process for hydraulic cylinder packing replacement , Dms Seals Technology Co.,limited effectively control its quality.

1. Installation Recommendation

2. Application and properties

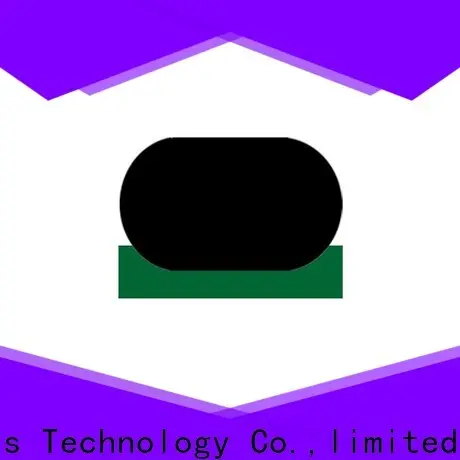

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. With rich experience in the field of hydraulic cylinder packing replacement , Dms Seals Technology Co.,limited dedicates itself to providing the highest quality products. Dms Seals Technology Co.,limited is an independent enterprise specialized in rod seals . Dms Seals Technology Co.,limited is a one-stop hydraulic o rings suppliers products supplier. Dms Seals Technology Co.,limited is a large manufacturer of piston seal material with strong R&D capability.
2. DMS Seal Manufacturer has great technical power to guarantee the quality of metric hydraulic cylinder seals . Dms Seals Technology Co.,limited has a complete and scientific quality management system. DMS Seal Manufacturer has strong unique technical strength to produce hydraulic packing kits . The application of new technology into hydraulic packing and seals brings newly high technology experience for customers. In order to improve the core competitiveness, the technical center of DMS Seal Manufacturer has fully learnt the advantages of advanced technology.
3. We never stop improving customer satisfaction. We will always put the principles of customer first and quality first into practice. Our company understands the global nature of today's manufacturing industry and we are always ready to meet our customers' needs. Our products and services will always be customized to meet these needs. Inquire! Our company bears social responsibility. We optimize our resources through increased efficiency and different usage for better products while reducing environmental impacts. We believe that sustainable manufacturing is efficient manufacturing. The computerized production lines we use cut costs and energy usage by ensuring that power is used only when it is needed. Respect for customers is one of the values of our company. And we have succeeded in teamwork, collaboration, and diversity with our customers. Inquire!
