DMS Seal Manufacturer high end rod seal installation with nbr or fkm o ring to high and low speed

Company Advantages
1. DMS Seal Manufacturer uses superior raw materials that is environmentally friendly and harmless to the environment. They are choose strictly according to the highest packaging standards.
2. The design of DMS Seal Manufacturer is of innovation. It is carried out by our designers who keep their eyes on current furniture market styles or forms.
3. DMS Seal Manufacturer goes through a professional design process. It is designed considering mechanical structure, control system, the performance of components and parts, etc.
4. This product has no manufacturing flaws. It is guaranteed to be free from defects in quality and performance with normal manufacturing tolerances and quality control procedures.
5. The product features high energy efficiency. It is manufactured adopting the latest energy-saving technology and it has been proved to have passed the Energy-saving Certification.
6. It is not vulnerable to get pilling. The product will go through the antistatic and softness treatment to reduce its coefficient of friction.
7. The product can eliminate most of the harmful substances present in the water. When the activated carbon is used to treat a liquid, the pollutant molecules are trapped inside its pores.
8. The product features a seamless design. The panel has a unique fast seal winding mechanism and a solid vertical seal edge profile to ensure that all panels fit perfectly.
9. DMS Seal Manufacturer not only appreciates the rod seal installation but also a service commitment.
10. Dms Seals Technology Co.,limited has a solid research base and product R&D capabilities in the field of rod seal installation .
11. Dms Seals Technology Co.,limited constantly provide training for our workers to improve quality.

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

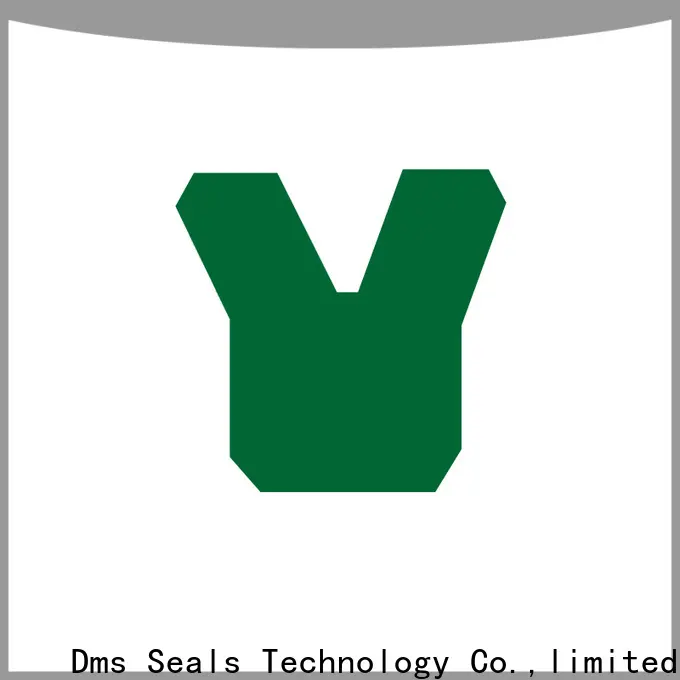

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Dms Seals Technology Co.,limited has been widely recognized and popular for its rod seal installation . With a focus on hydraulic cylinder packing material , Dms Seals Technology Co.,limited is the world-renowned manufacturer. As a world class producer of hydraulic cylinder gaskets , Dms Seals Technology Co.,limited is quickly growing.
2. We have a strong research and development team that masters core technologies. They are able to develop numerous new styles annually, according to customer’s needs from all over the world and the prevalent trend of the market. We have an excellent design team. It is made up of highly creative people who know the industry very well. They can always create sought-after products. Our Senior Management Team is responsible for the strategic direction of our company. They have extensive experience within their disciplines and are capable of improving the overall operational efficiency.
3. We are committed to customer satisfaction. We do not just deliver products. We provide total support, including needs analysis, out-of-the-box ideas, manufacturing, and maintenance. We are protecting resources and ecosystems. We're improving the quality of discharge, reducing CO2 emissions, and conserving water resources. We will handle production wastes in a proper and reasonable way. We will ensure the wastes to be stored, transported, treated, or discharged in an environmentally appropriate manner. We have made ambitious energy goals both in terms of efficiency and renewables. From now on, we will focus on making environmentally friendly products that are manufactured under the concept of minimal energy consumption and resources waste. We have had a stellar record in promoting sustainability. During production, we have made progress in eliminating chemical discharges into waterways and have significantly increased energy efficiency.

DMS Seal Manufacturer high end rod seal installation with nbr or fkm o ring to high and low speed

rod seal installation

Type:
