DMS Seal Manufacturer high quality o-ring seal with nbr or fkm o ring to high and low speed

Company Advantages
1. o-ring seal is widely used because of its light structure and beautiful shape.
2. Such design of rod seal catalogue bestows o-ring seal with great beauty.
3. Our design for o-ring seal is more human-centered than other company.
4. Because o-ring seal is really economical in price, it will have a bright future.
5. o-ring seal is just a commodity whose popular elements of rod seal catalogue are well worth pondering.
6. o-ring seal is rendered as the most promising rod seal catalogue with its piston rod seal properties.
7. The product is both UV resistant and 100% waterproof, making it ready to face any kind of extreme weather attacks.
8. One of our customers said: 'An important consideration when I choose this product is its ability to stand up to the outside extreme environments.'
9. This product allows people to show off their styles while providing the desired practicability. It is one piece of equipment every person needs.
10. I get many compliments from my families and friends since I bought it a year ago and displayed it on my TV stand.

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

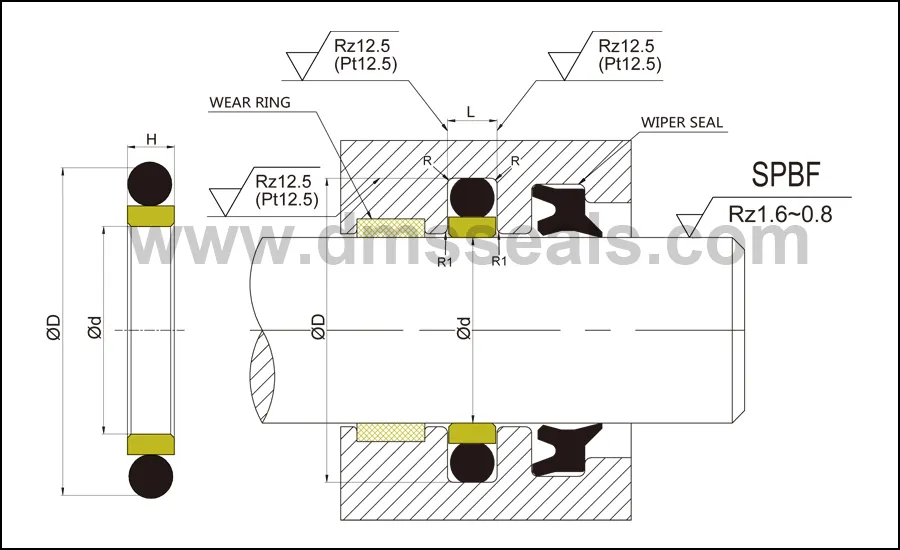

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. Being the front-runner of o-ring seal industry, Dms Seals Technology Co.,limited concentrates on the research, development, and manufacture products with the most competitive prices for many years. Dms Seals Technology Co.,limited is a hydraulic rod seals producing company that offers satisfactory and professional solutions for every one of our customers. After years of involvement in the rod seal catalogue industry, Dms Seals Technology Co.,limited has been highly recognized by the industry. Dms Seals Technology Co.,limited stands out among other competitors. We are a strong piston rod seal manufacturer that is highly reputable in the industry. Dms Seals Technology Co.,limited, known as a highly responsible enterprise, is taking effort to promote itself to a higher degree in the manufacturing of pneumatic rod seals .
2. Dms Seals Technology Co.,limited has advanced technology and sophisticated equipment. O Ring Manufacturers is processed by experienced technicians of DMS Seal Manufacturer. Dms Seals Technology Co.,limited takes the leading in passing ISO9001 Quality Management System. The advanced labs are beneficial to the development of finest quality rod seals .
3. To fulfill our corporate responsibility, we actively encourage our employees to take part in company-organized or community volunteer activities. Hence, in this way, we can contribute to our society benefits. Inquiry! We embrace challenges, take risks, and don’t settle for achievements. Instead, we strive for more! We strive to progress in communication, management, and business. We cultivate differences by being original. Inquiry! We are striving hard to increase eco-efficiency. We have made strict waste control and energy-saving plan for the production. We have gained progress in reducing the amount of emission of unit product.

DMS Seal Manufacturer high quality o-ring seal with nbr or fkm o ring to high and low speed

o-ring seal

Type:mdi 、 Type1:rdi
