DMS Seal Manufacturer hot sale rod seal o ring

Company Advantages
1. DMS Seal Manufacturer rod seal follows an extremely strict process in product design and development.
2. DMS Seal Manufacturer adopts reasonable improvements in production.
3. With its unique characteristics of , rod seal DMS Seal Manufacturer manufactures are eye-catching products now.
4. DMS Seal Manufacturer rod seal is manufactured after countless technology improvements.
5. At Dms Seals Technology Co.,limited, we offer the following high quality material formulations, including .
6. In its production, we attach great importance to reliability and quality.
7. It delivers great benefits to customers with longer service life and stable performance.
8. Its functionality has been technically improved by a professional team.
9. There is no negative feedback about the product quality and usability.
10. Being cost-efficient, the product will be applied more widely in the future.
11. DMS Seal Manufacturer produces rod seal with greatest performance for its high quality.
12. We have found that this product has a tendency to be more applicable.
13. The product can generate remarkable economic benefits to customers, showing wider application prospect.

1. Installation Recommendation

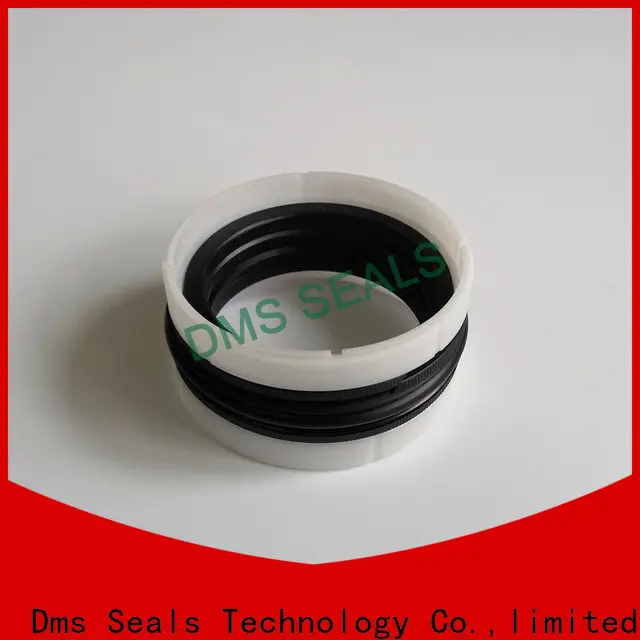

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. As a well-known manufacturer of rod seal , Dms Seals Technology Co.,limited has a large market share. Dms Seals Technology Co.,limited is a major producer of rubber seal strip suppliers in China. Dms Seals Technology Co.,limited is a brand new high-end seals gaskets suppliers manufacturer. Fully focused on lip seal suppliers R&D and production, Dms Seals Technology Co.,limited is globally recognized.
2. Dms Seals Technology Co.,limited develops technological superiority in natural rubber seal field. We have professional QC team to guarantee pump seal supplies 's quality. Major breakthrough in producing finest custom oil seals has been made in DMS Seal Manufacturer. The delicate mechanical shaft seals springs presents the cutting-edge technology of DMS Seal Manufacturer. DMS Seal Manufacturer establishes competent labs to manufacture link seal manufacturers .
3. Dms Seals Technology Co.,limited firmly insist the concept of for long-term development. Inquire now! DMS Seal Manufacturer's philosophy has always been providing not just a better pu seals manufacturer , but well serving the customers. Inquire now! Steadily Dms Seals Technology Co.,limited will build a business structure of . Inquire now! Dms Seals Technology Co.,limited has been responsible for developing a number of highly marketable piston rings by size for years. Inquire now! Our tenet of mechanical pump seals suppliers is our high belief. Inquire now!

DMS Seal Manufacturer hot sale rod seal o ring

rod seal

Type:
