DMS Seal Manufacturer hydraulic cylinder piston rings factory for pressure work and sliding high speed occasions

Company Advantages
1. The DMS Seal Manufacturer hydraulic cylinder piston rings provides reliable performance, and users won't have to worry about its quality.
2. DMS Seal Manufacturer is fabricated using top grade raw materials under the strict supervision of our quality experts.
3. The raw materials of DMS Seal Manufacturer hydraulic cylinder piston rings are procured from some of the most trustworthy and certified vendors in the industry.
4. It does not have metal burrs on its surface. It is treated under mechanical stamping and honing which effectively improve its surface smoothness.
5. This product is available in a wide selection of colors, including all of the standard colors that conventional bedding comes.
6. The product features the desired safety. It can perform tasks in hazardous environments where humans are unable to operate.
7. It allows sweat to be sucked away rather than be absorbed, which keeps sleepers cool and dry during the night.
8. This piece with a smart and compact design makes it an ideal choice for apartments and some commercial rooms, and it makes the room eye-catching.
9. It gives enough stretchability and a perfect fit for the body. It does not restrain wearers' movement when they stretch themselves or walk.
10. This product can remodel the kitchen. Its unique design provides the kitchen with a luxurious look and elegant feel.

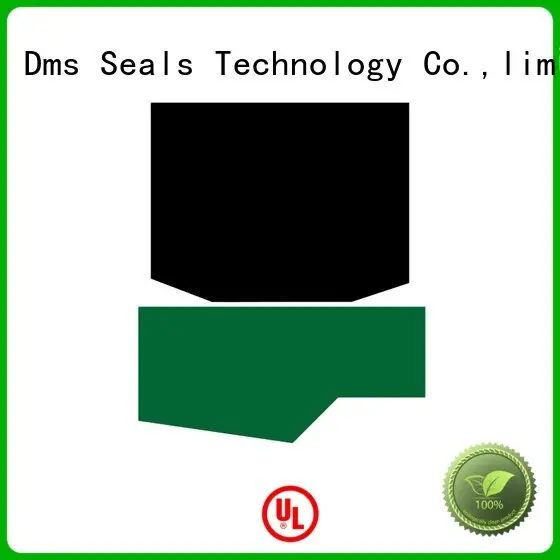

1. Installation Recommendation

2. Installation Sizes

Rod Diameter	Outer Diameter	Groove Width	Install Chamfer	Radius	Radial Clearance                S max.
d f8	D H8	L+0.2	L1	R1	10MPa	20MPa	40MPa
50-69.9	d+15.0	7.5	5.0	0.4	0.5	0.4	0.3
70-149.9	d+20.0	10.1	6.0	0.4	0.7	0.5	0.4
200-244.9	d+25.0	12.5	8.5	0.4	0.8	0.6	0.5
245-519.9	d+30.0	15.0	10.0	0.8	0.9	0.7	0.6
520-769.9	d+35.0	17.5	13.0	1.2	1.0	0.8	0.7
770-1500	d+40.0	20.0	15.0	1.2	1.0	0.8	0.7

3. Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	5 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d f8	D H8	L+0.2
50 60 70	65 75 85	7.5 7.5 7.5	GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5
75 80 100	95 100 120	10 10 10	GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10
110 115 120	130 135 140	10 10 10	GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10
130 140 145	150 160 165	10 10 10	GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10
150 160 170	170 180 190	10 10 10	GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10
175 180 200	195 200 220	10 10 10	GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10
230 240 250	255 265 275	12.5 12.5 12.5	GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5
260 265 270	285 290 295	12.5 12.5 12.5	GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5
280 290 300	305 315 325	12.5 12.5 12.5	GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5
