DMS Seal Manufacturer hydraulic cylinder piston seals glyd ring for sale

Company Advantages
1. DMS Seal Manufacturer hydraulic cylinder piston seals has to pass through a series of rigorous tests in a lab environment. For example, its electrical components and accessories have to be tested to comply with health and safety standards.
2. DMS Seal Manufacturer hydraulic piston seals uses materials certified by OEKO-TEX and CertiPUR-US as free from toxic chemicals which have been a problem in mattress for several years.
3. Inspection of DMS Seal Manufacturer hydraulic cylinder piston seals will be carried out by the QC team. Its appearance will be inspected to make sure the identification of polarity is correct and the battery lead is finely handled.
4. DMS Seal Manufacturer hydraulic piston seals has been tested for electrical components and accessories, including adaptors, cables, electrical panels, extension cords, external power supply, power supply, etc.
5. Excellent thermal stability can be expected on this product. The surface of the product is applied with high-temperature oxidation resistant coating to enhance its temperature resistance.
6. The product features enough traction. The test is conducted to determine the coefficient of friction and slip resistance characteristics.
7. The product is waterproof. The polyester material has almost zero water absorption and the water cannot come into contact with the inner canopy.
8. It is characterized by its remarkable temperature resistance. High-temperature oxidation resistant coating, which may react with the active molecule under high temperature, is applied on the surface.
9. More than being aesthetically pleasing, this garment aligns with the fit expectation of the target customer in a consistent and reliable manner.
10. It showcases products in an aesthetically pleasing way. It appeals to customers, thus bringing sales and profit success.
11. This product is meant for a good night’s sleep, which means that one can sleep comfortably, without feeling any disturbances during movement in their sleep.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

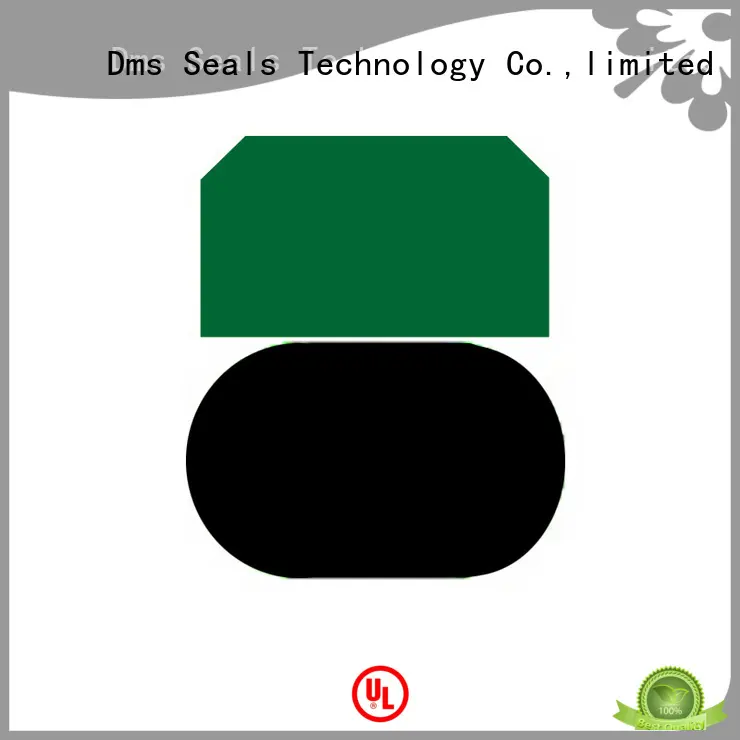

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Many people at home and abroad choose DMS Seal Manufacturer as their first choice when they are in need of hydraulic piston seals . In recent years, Dms Seals Technology Co.,limited has developed rapidly in o-ring seal field. Dms Seals Technology Co.,limited focuses on research and development of high-quality piston seals products.
2. The establishment of a technology center promotes the development of DMS Seal Manufacturer. To be a leading hydraulic piston seals provider, DMS Seal Manufacturer adopts exceptionally innovative technology. Dms Seals Technology Co.,limited has a large number of high-level technicians, senior skilled workers and excellent management personnel.
3. By advocating enterprise culture, DMS Seal Manufacturer has more confidence to offer better hydraulic piston seals and services. Please contact. DMS Seal Manufacturer aims to provide the best shopping experience to not only create value for consumers but company. Please contact. Dms Seals Technology Co.,limited will constantly improve itself, developing new ideas and create a well-known brand in hydraulic piston seals industry. Please contact.
