DMS Seal Manufacturer hydraulic cylinder piston seals Supply for sale

Company Advantages
1. To differentiate from competitors, DMS Seal Manufacturer adopts a unique design developed by our R&D team.
2. The material and design of DMS Seal Manufacturer will withstand the rigors of the intended use.
3. The design of DMS Seal Manufacturer has been further strengthened.
4. It is the that makes hydraulic cylinder piston seals unique especially in the design industry.
5. This product features ergonomic comfort. Garment design that takes into consideration the ease and contour and how these two factors affect this product in different areas contributes to its ergonomic comfort.
6. This product has the desired safety. The clean-cut and rounded edges are the strong guarantees of high levels of safety and security.
7. This product is mould and mildew repellant. It has gone through mildew proof finishing and processing using specific agents to guard against aspergillus niger, penicillium, Trichophyton rubrum, etc.
8. It is rather safe for people. This product does not contain health-dangering elements, such as dioxin, chlorinated hydrocarbons, or formaldehyde.
9. This product features a strong structure. Constructed with materials that have remarkable mechanical properties, it can be used in rigorous conditions.
10. DMS Seal Manufacturer can also guarantee the fast delivery time.
11. The qualify of work during the process will also lead to the high-quality hydraulic cylinder piston seals .
12. Mass production of hydraulic cylinder piston seals with high quality is available in DMS Seal Manufacturer.
13. As a specialized company, Dms Seals Technology Co.,limited is highly recommended by customers.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

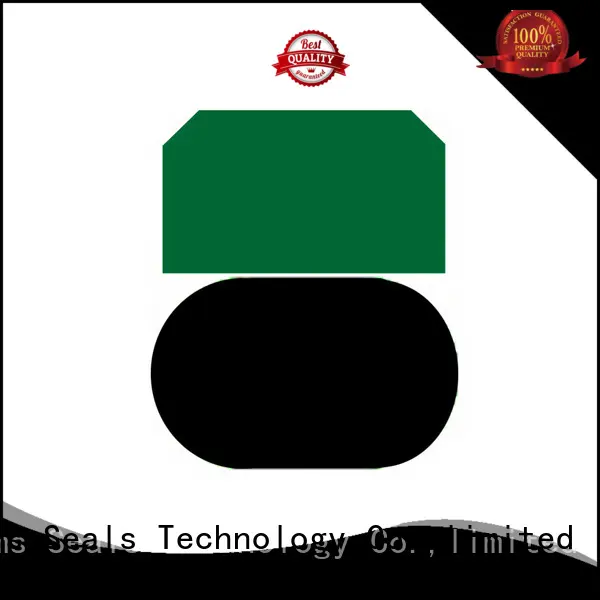

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a competitive manufacturer of in China. Our experience and expertise make us stand out in the market. Dms Seals Technology Co.,limited is one of the leading manufacturers of in China, with profound industry knowledge and extensive manufacturing experience. Over the years, Dms Seals Technology Co.,limited has accumulated lots of experience in developing, designing, and manufacturing high-quality . After years of solid development, Dms Seals Technology Co.,limited has become one of the backbone companies that specialize in the R&D and production of hydraulic cylinder piston seals .
2. Dms Seals Technology Co.,limited utilizes high technology to make hydraulic piston seals suppliers in an efficient manner. Currently in the domestic market Dms Seals Technology Co.,limited has a higher share. Our manufacturing and processing centers are strategically located. They are close to our customers and to growing regions, which will do a favor for our business. We had successfully completed many big product projects with cooperations around the world. And now, these products have been widely sold around the globe.
3. DMS Seal Manufacturer always adheres to the R&D to provide a better service for customers. Check now! Dms Seals Technology Co.,limited focus on its business strategy of . Check now! We will always providing high quality and best service for our hydraulic piston seals sizes . Check now!
