DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer hydraulic cylinder seal design factory for cranes
-
v s
1. DMS Seal Manufacturer is manufactured using the latest machinery and known for its reliable attributes.
2. DMS Seal Manufacturer hydraulic cylinder seal design is designed and made as per the prevailing market norms and guidelines.
3. The appearance of DMS Seal Manufacturer is designed by an experienced design team.
4. DMS Seal Manufacturer hydraulic cylinder seal design is designed to provide customers with choice and flexibility.
5. Being qualified with makes hydraulic cylinder seal design consequent to be the fashion trend.
6. hydraulic cylinder seal design with fully convey the concept of .
7. hydraulic cylinder seal design has the advantages of .
8. hydraulic cylinder seal design presents the characteristics with .
9. The use of this product ensures the division of labor. Workers can stipulate and specific roles of which they do with the use of this product.
10. The good fit of this product greatly helps avoid foot pain and other body-related problems. This product is an easy way to increase the quality of people's life.
11. This product complements a healthy lifestyle and will promote the greater sustainability values that are of paramount importance to us all.
12. This product looks beautiful and feels good, providing a consistent style and functionality. It adds to a room's design aesthetic.

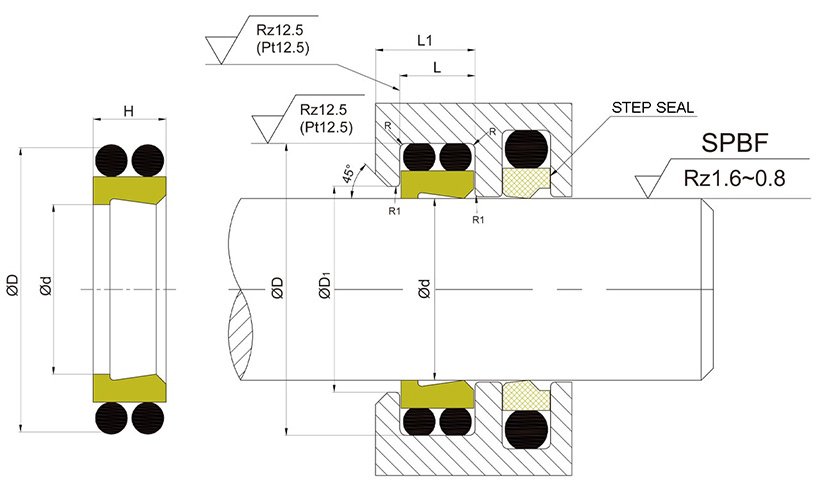

Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties
For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
