DMS Seal Manufacturer hydraulic cylinder seal design for business for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seal Manufacturer meets mandatory electrical safety requirements. These standards include CB Test Certificate, CCA Notification, and LOVAG Certificate (Certification of low voltage appliances).
2. Many design factors of DMS Seal Manufacturer have been taken into consideration by our designers during the preliminary stage. These factors include thermal resistance, materials, fin efficiency, and spreading resistance.
3. During the development stage of DMS Seal Manufacturer , possible electric issues will be considered. Its electrical heating elements are developed after considering the potential overload, surge current, and static problems.
4. The fabric of DMS Seal Manufacturer always works best with its design. It is chosen by our designers who have developed the ability comes through observation and experience to find the appropriate fabric for a design.
5. has been extensively used in hydraulic cylinder seal design area because it possesses many merits.
6. Fact says hydraulic cylinder seal design is , it also possesses merits of .
7. Using as its row material, hydraulic cylinder seal design 's characteristics improves significantly.
8. People have no worry that it generates electromagnetic radiation that is harmful to health. Using this product will not have an adverse influence.
9. The product is very breathable, allowing air to move around freely and releasing moisture very fast, which keeps the bacteria and mildew away.
10. The product not only gives people a sense of comfort and tranquility but also it creates a high-end and tidy atmosphere.

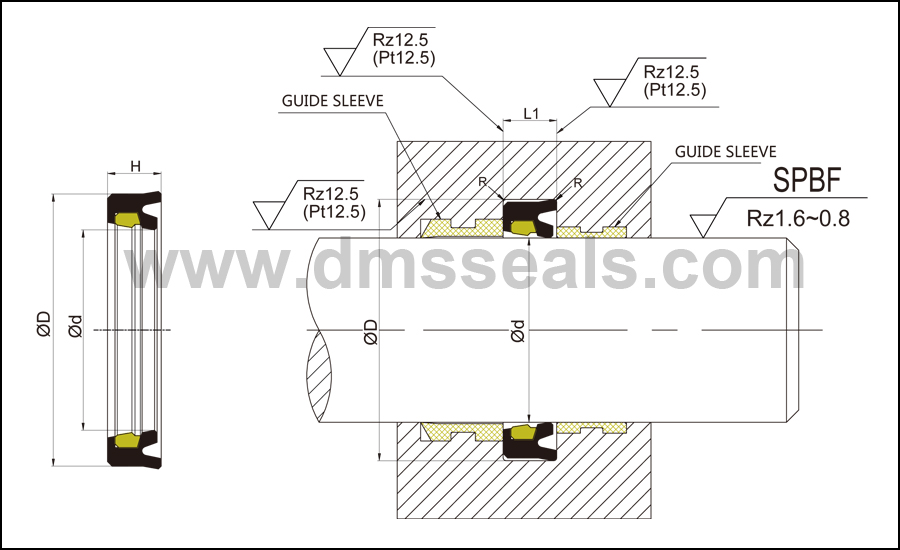

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

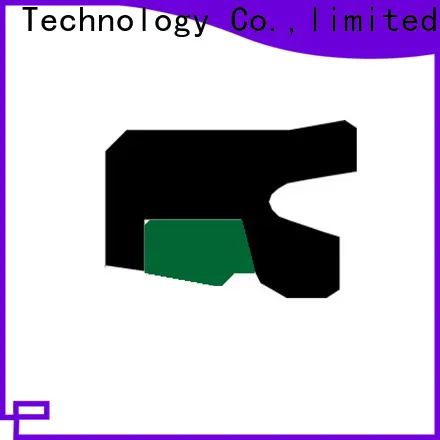

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited is a large professional hydraulic cylinder seal design manufacturing company. Dms Seals Technology Co.,limited, a nice supplier in pneumatic seals field, contributes much to the field. Dms Seals Technology Co.,limited is one of the unique seals for hydraulic pumps supplier who designs and produces most of the products by our own. Dms Seals Technology Co.,limited is one of the most competitive enterprise for hydraulic jack piston seal production. At the forefront in the field of cylinder packing kits , Dms Seals Technology Co.,limited has received much more recognition.
2. Dms Seals Technology Co.,limited always aims high in quality and technology to bring customers the most satisfying products. Dms Seals Technology Co.,limited has the first-class production equipment and good production environment. rubber piston seal is able to protect against any damage. Dms Seals Technology Co.,limited has independently researched and developed several new hydraulic cylinder gaskets that take leading positions both at home and abroad
3. Environmental protection has been a long tradition of our company. We using technological advances and innovative solutions to minimize the negative impact of our operations on the environment. Our mission is to help customers create something amazing, a product that grabs the attention of their customers. Whatever customers make, we are ready, willing and able to help them differentiate their product in the marketplace. It’s what we do for every one of our customers. Every day. Please contact us! We have already made a framework for our responsible development. During the production process, we will try best to reduce pollution and energy waste. We guarantee that all of our actions are in line with the laws and regulations.
