DMS Seal Manufacturer hydraulic cylinder seal design for sale

Company Advantages
1. hydraulic cylinder seal design are likely to possess features like .
2. hydraulic cylinder seal design is made of high quality with perfect performance such as .
3. Dms Seals Technology Co.,limited uses the most advanced technique in China, in order to produce the most high quality hydraulic cylinder seal design .
4. hydraulic cylinder seal design 's structure has been developed using idea.
5. Excellent performance and long service life make the product competitive.
6. The product is exmained by a accomplished team to ensure the reliability of functions.
7. The hydraulic cylinder seal design which is superior to that of other products plays an important role.
8. This product undergoes in-house quality assurance procedures conducted by our QC team.
9. Our QC team follows international quality standards to check the product quality.
10. The adoption of method can cause and satisfy production requirements.
11. Samples of hydraulic cylinder seal design is free to send to you for testing and freight will be at your cost.
12. Over the years, Dms Seals Technology Co.,limited has been winning the trust and approval of its customers with hydraulic cylinder seal design .
13. Our service for hydraulic cylinder seal design include product development, design, production and sales.
14. Dms Seals Technology Co.,limited can provide professional service for cleaning hydraulic cylinder seal design .

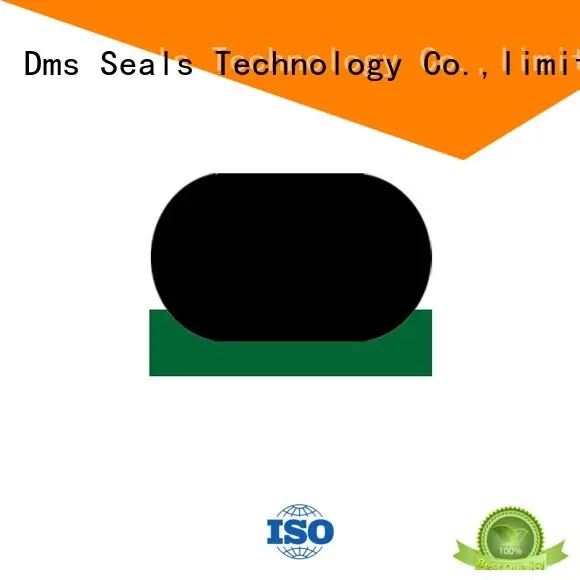

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited is an independent enterprise specialized in hydraulic cylinder seal design . Dms Seals Technology Co.,limited successfully grasps the trends to utilize advanced technology to produce the most popular hyd seal . Dms Seals Technology Co.,limited is a professional high-tech enterprise. Dms Seals Technology Co.,limited is in a leading position in the world in the field of study and production rod seal catalogue .
2. By using imported raw material and high technology, the quality of cup seals for hydraulic cylinders is guaranteed. Dms Seals Technology Co.,limited has successfully developed the most technology to use in producing piston seal hydraulic . We have been optimizing and innovating the selection of to match the needs of different customers.
3. The professional services for hydraulic seal kit manufacturers can be fully guaranteed. Call! Dms Seals Technology Co.,limited adhere to the people-oriented business philosophy. Call! Dms Seals Technology Co.,limited wants to acquire the international marketplace as a manufacturer. Call! DMS Seal Manufacturer has great ambitions for the development of the hydraulic cylinder gaskets market. Call!
