DMS Seal Manufacturer hydraulic cylinder seal design Suppliers to high and low speed
1. We check the fabric of DMS Seal Manufacturer before production. It is evaluated according to weight, printing quality, defects and feel. DMS Seals implements and optimizes its quality control systems
2. Many customers are not only satisfied with the quality of hydraulic cylinder seal design , but also the service. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. The most important difference between this product and other products is the long-term service life. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

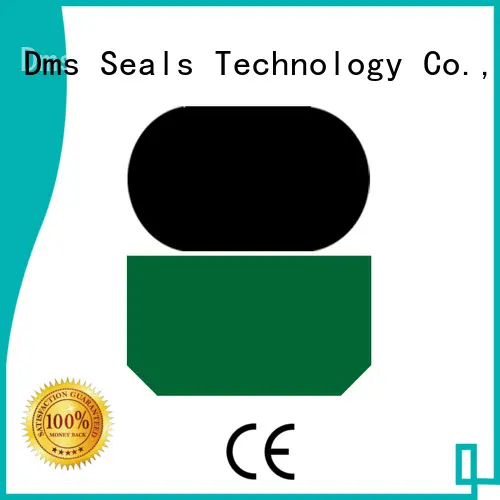

1. Installation Recommendation
2. Installation Sizes
Rod Diameter dN h9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | D1 H9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
3-7.9 | 8-18.9 | - | dN+4.9 | 2.2 | 0.4 | 0.3 | 0.20 | 0.15 | 1.78 |
8-18.9 | 19-37.9 | - | dN+7.3 | 3.2 | 0.6 | 0.4 | 0.25 | 0.15 | 2.62 |
19-37.9 | 38-199.9 | 8-18.9 | dN+10.7 | 4.2 | 1.0 | 0.4 | 0.25 | 0.20 | 3.53 |
38-199.9 | 200-255.9 | 19-37.9 | dN+15.1 | 6.3 | 1.3 | 0.5 | 0.30 | 0.20 | 5.33 |
200-225.9 | 256-649.9 | 38-199.9 | dN+20.5 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
256-649.9 | 650-999.9 | 200-255.9 | dN+24.0 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
650-999.9 | ≥1000.0 | 256-649.9 | dN+27.3 | 9.5 | 2.5 | 0.7 | 0.50 | 0.30 | 8.40 |
≥1000.0 | - | 650-999.9 | dN+38.0 | 13.8 | 3.0 | 1.0 | 0.70 | 0.60 | 12.00 |
3. Application and properties
Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.
Meet the standard of GB/T 15242.3.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
Rod Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimensions |
DN h9 | D1 H9 | L1+0.2 | ||
20 20 22 | 27.3 30.7 29.3 | 3.2 4.2 3.2 | GSI20*27.3*3.2 GSI20*30.7*4.2 GSI22*29.3*3.2 | 21.89*2.62 25.0*3.53 25.07*2.62 |
22 24 25 | 32.7 31.3 32.3 | 4.2 3.2 3.2 | GSI22*32.7*4.2 GSI24*31.3*3.2 GSI25*32.3*3.2 | 26.57*3.53 26.64*2.62 28.24*2.62 |
25 26 28 | 35.7 36.7 35.3 | 4.2 4.2 3.2 | GSI25*35.7*4.2 GSI26*36.7*4.2 GSI28*35.3*3.2 | 29.74*3.53 29.74*3.53 29.82*2.62 |
28 30 30 | 38.7 37.3 40.7 | 4.2 3.2 4.2 | GSI28*38.7*4.2 GSI30*37.3*3.2 GSI30*40.7*4.2 | 32.92*3.53 32.99*2.62 34.52*3.53 |
32 32 35 | 39.3 42.7 42.3 | 3.2 4.2 3.2 | GSI32*39.3*3.2 GSI32*42.7*4.2 GSI35*42.3*3.2 | 34.59*2.62 36.09*3.53 37.77*2.62 |
35 36 36 | 45.7 43.3 46.7 | 4.2 3.2 4.2 | GSI35*45.7*4.2 GSI36*43.3*3.2 GSI36*46.7*4.2 | 37.69*3.53 39.34*2.62 40.87*3.53 |
38 38 40 | 48.7 53.1 50.7 | 4.2 6.3 4.2 | GSI38*48.7*4.2 GSI38*53.1*6.3 GSI40*50.7*4.2 | 40.87*3.53 43.82*5.33 44.04*3.53 |
