DMS Seal Manufacturer hydraulic oring piston seals piston ptfe

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Different from other companies, Dms Seals Technology Co.,limited adopts material of pneumatic piston seals to manufacture piston seals. DMS Seals takes the lead in grasping the development trend of the industry
2. Dms Seals Technology Co.,limited is committed to providing customers with high quality and competitive products and services. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
3. The hydraulic piston seals which is superior to that of other products plays an important role. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
4. hydraulic piston seals sizes has been extensively used in o-ring seal area because it possesses many merits. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

Installation Recommendation

undefined

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-16.9	17-26.9	--	DN-4.9	2.2	0.4	0.30	0.20	0.15	1.78
17-26.9	27-59.9	--	DN-7.3	3.2	0.6	0.40	0.25	0.15	2.62
27-59.9	60-199.9	17-26.9	DN-10.7	4.2	1.0	0.50	0.30	0.20	3.53
60-199.9	200-255.9	27-59.9	DN-15.1	6.3	1.3	0.70	0.40	0.25	5.33
200-255.9	256-669.9	60-199.9	DN-20.5	8.1	1.8	0.80	0.60	0.35	7.00
256-669.9	670-999.9	200-669.9	DN-24.0	8.1	1.8	0.90	0.70	0.40	7.00
670-999.9	--	256-669.9	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	1000-2000	--	DN-28.0	9.5	2.5	1.00	0.80	0.60	8.40
--	--	670-999.9	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00
1000-2700	--	--	DN-38.0	13.8	3.0	1.20	0.90	0.60	12.00

Application and properties

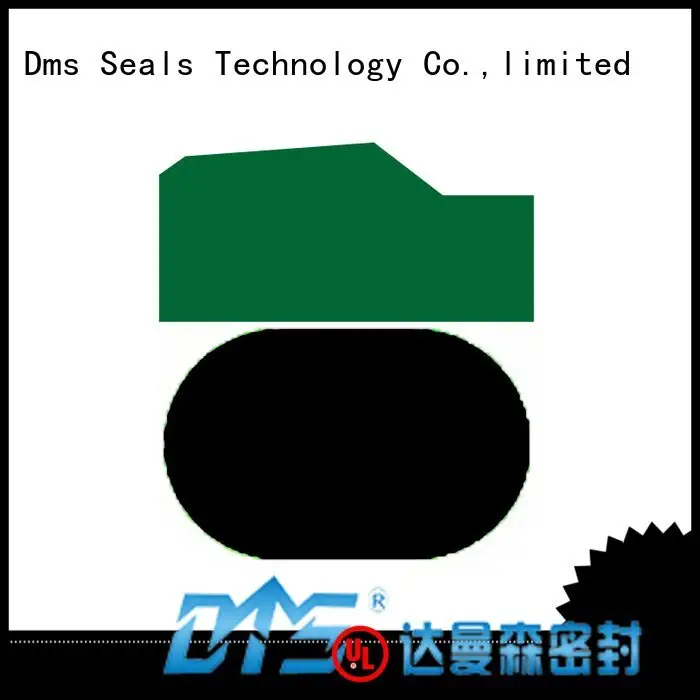

Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Width	Order No.	O-ring Dimension
D H9	d1 h9	L1+0.2	Order No.	O-ring Dimension
9 10 12	4.1 5.1 7.1	2.2 2.2 2.2	GSD94.12.2 GSD105.12.2 GSD127.12.2	3.681.78 4.801.8 6.70*1.8
15 18 20	10.1 10.7 15.1	2.2 3.2 2.2	GSD1510.12.2 GSD1810.73.2 GSD2015.12.2	9.251.78 9.192.62 14.0*1.78
20 22 25	12.7 14.7 17.7	3.2 3.2 3.2	GSD2012.73.2 GSD2214.73.2 GSD2517.73.2	12.372.62 13.942.62 17.12*2.62
27 28 30	16.3 17.3 19.3	4.2 4.2 4.2	GSD2716.34.2 GSD2817.34.2 GSD3019.34.2	15.473.53 16.43.53 18.66*3.53
32 32 35	24.7 21.3 24.3	3.2 4.2 4.2	GSD3224.73.2 GSD3221.34.2 GSD3524.34.2	23.472.62 20.223.53 23.40*3.53
36 38 40	25.3 27.3 32.7	4.2 4.2 3.2	GSD3625.34.2 GSD3827.34.2 GSD4032.73.2	243.53 263.53 31.42*2.62
40 45 48	29.9 34.3 37.3	4.2 4.2 4.2	GSD4029.34.2 GSD4534.34.2 GSD4837.34.2	28.173.53 32.923.53 36.09*3.53
50 50 52	39.3 34.9 41.3	4.2 6.3 4.2	GSD5039.34.2 GSD5034.96.3 GSD5241.34.2	37.703.53 32.695.33 40.87*3.53
55 60 63	44.3 44.9 52.3	4.2 6.3 4.2	GSD5544.34.2 GSD6044.96.3 GSD6352.34.2	44.043.53 43.825.33 50.39*3.53
63 64 65	47.9 48.9 49.9	6.3 6.3 6.3	GSD6347.96.3 GSD6448.96.3 GSD6549.96.3	46.995.33 46.995.33 46.99*5.33
70 70 75	59.3 54.9 59.9	4.2 6.3 6.3	GSD7059.34.2 GSD7054.96.3 GSD7559.96.3	56.743.53 53.345.33 56.52*5.33
80 80 85	64.9 59.5 69.9	6.3 8.1 6.3	GSD8064.96.3 GSD8059.58.1 GSD8569.96.3	62.875.33 587.0 69.22*5.33
90 90 95	74.9 69.5 79.9	6.3 8.1 6.3	GSD9074.96.3 GSD9069.58.1 GSD9579.96.3	72.395.33 687.0 78.74*5.33
95 100 100	74.5 84.9 79.5	8.1 6.3 8.1	GSD9574.58.1 GSD10084.96.3 GSD10079.58.1	737.0 81.925.33 78*7.0
110 120 125	94.9 104.9 104.5	6.3 6.3 6.3	GSD11094.96.3 GSD120104.96.3 GSD125109.96.3	91.445.33 104.145.33 107.32*5.33

Installation Dimensions
