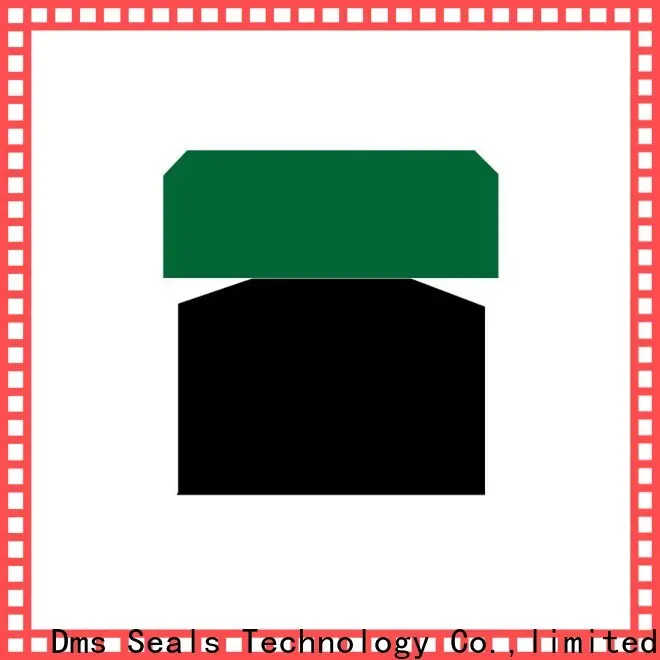

DMS Seal Manufacturer hydraulic piston seals with ptfe nbr and pom for pneumatic equipment 1

DMS Seal Manufacturer hydraulic piston seals with ptfe nbr and pom for pneumatic equipment 2

DMS Seal Manufacturer hydraulic piston seals with ptfe nbr and pom for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+100℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Enterprise Strength

As for customer service management, Dms Seals insists on combining standardized service with personalized service, so as to fulfill different needs of customers. This enables us to build a good corporate image.

Product Details

Dms Seals's O-ring Seal is processed based on advanced technology. It has excellent performances in the following details.O-ring Seal has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.

Company Advantages
1. The design of hydraulic piston seals is completed by famous designers from international companies.
2. Such structures of hydraulic piston seals are characterized by .
3. With time going on, the advantages for hydraulic piston seals are more obvious and attract more customers.
4. The combination of superior materials and an advanced concept of makes hydraulic piston seals unique.
5. The product prevails over its competitors with stable performance and long service life.
6. The product is highly praised by experts regarding performance evaluation.
7. Mature and stable production process ensures hydraulic piston seals has perfect product performance.
8. Through the reform of details and materials of hydraulic piston seals , it is high performance with affordable price.
9. Customers who bought this hardware say it not only has excellent practical functionality but also it carters to their personal aesthetic standard.
10. One of our customers says: 'I love this product! I purchased it to help with stiff joints and muscle aches. It was totally worth it to me.'
11. 'I gave one of it to my daughter and she loved and cherish it so much! I'm pretty sure my clients will love it too', said my one of my customers.
12. This product does not fade over time and has no burrs and flaking off problems, which are facts that many consumers agree on.

Installation Recommendation

undefined

Installation Sizes

Bore Diameter	Groove Diameter	Groove Width	Radius	Radial Clearance S max.
D H8	d h8	L1+0.2	R1	16MPa	26MPa	32MPa	40MPa
55.0-149.9	D-10.0	10.0	0.4	0.60	0.50	0.40	0.40
150.0-244.9	D-12.5	12.5	0.4	0.75	0.65	0.55	0.50
245.0-500.0	D-15.0	15.0	0.8	0.75	0.65	0.55	0.50
500.1-760.0	D-17.5	17.5	1.2	0.75	0.65	0.55	0.50
760.1-999.9	D-20.0	20.0	1.2	0.80	0.70	0.60	0.55
≧1000	D-20.0	20.5	1.2	0.80	0.70	0.60	0.55

Application and properties

Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+100℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.
D H8	d h8	L+0.2	Order No.
55 60 70	40 45 55	10 10 10	GSF-W554010 GSF-W604510 GSF-W705510
80 90 100	60 70 80	10 10 10	GSF-W806010 GSF-W907010 GSF-W1008010
110 115 120	90 95 100	10 10 10	GSF-W1109010 GSF-W1159510 GSF-W12010010
130 140 150	110 120 125	10 10 12.5	GSF-W13011010 GSF-W14012010 GSF-W15012512.5
160 165 170	135 140 145	12.5 12.5 12.5	GSF-W16013512.5 GSF-W16514012.5 GSF-W17014512.5
180 185 190	155 160 165	12.5 12.5 12.5	GSF-W18015512.5 GSF-W18516012.5 GSF-W19016512.5
200 205 210	175 180 185	12.5 12.5 12.5	GSF-W20017512.5 GSF-W20518012.5 GSF-W21018512.5
215 220 225	190 195 200	12.5 12.5 12.5	GSF-W21519012.5 GSF-W22019512.5 GSF-W22520012.5
230 240 245	205 215 215	12.5 12.5 15	GSF-W23020512.5 GSF-W24021512.5 GSF-W24521515

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is a strong competitor with high credit. We have accumulated years of experience in the manufacturing of . With rich experience in developing and producing hydraulic piston seals , Dms Seals Technology Co.,limited has got the recognization among competitors in the industry. Dms Seals Technology Co.,limited is a specialist in the creation of double acting piston cup , all along the value chain from product development to manufacturing.
2. Dms Seals Technology Co.,limited adopts international advanced quality control system and testing equipment. Dms Seals Technology Co.,limited has a dedicated team of supervisors, material managers and operations personnel. Dms Seals Technology Co.,limited has large-scale processing plant for hydraulic cylinder gaskets production.
3. Dms Seals Technology Co.,limited will never stop improving quality and service until our customers become satisfied. Get more info! Dms Seals Technology Co.,limited will replace the broken spare parts for customers with small charge or without charge. Get more info! For these years, Dms Seals Technology Co.,limited has take as its life. Get more info! To establish the service philosophy of is the base of Dms Seals Technology Co.,limited's work. Get more info!

DMS Seal Manufacturer hydraulic piston seals with ptfe nbr and pom for pneumatic equipment

hydraulic piston seals

Type:

DMS Seal Manufacturer hydraulic piston seals with ptfe nbr and pom for pneumatic equipment 6

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
