DMS Seal Manufacturer hydraulic ram seals online for business for sale

Company Advantages
1. The production of DMS Seal Manufacturer involves the following major steps. It has to go through stamping, coating, painting, drying, and polishing by respective machines.
2. We carry out process evaluation on DMS Seal Manufacturer to ensure that sewing, structure, and decoration meet international bedding standards.
3. Optical specifications are utilized throughout the design and manufacturing of DMS Seal Manufacturer to characterize how well it meets certain performance requirements such as luminous transmittance and Anti-reflection luminous reflectance.
4. hydraulic ram seals online have features like , accord with idea, and contributes to the field.
5. hydraulic ram seals online produced by Dms Seals Technology Co.,limited has been paid great attention because of its .
6. hydraulic ram seals online are usually , so it's to give them a try.
7. is used for protection to control the hydraulic ram seals online .
8. Because hydraulic ram seals online has many strong points such as, it is widely used in the field.
9. This product will be a smart option for people who are looking to save money on the design of a room. Its aesthetics give a wide range of design options for people.
10. This product is able to help the worker in performing his or her duties in a better way than by hands.
11. This product provides an effective space solution for a variety of environments including offices, dining facilities, and hotels.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

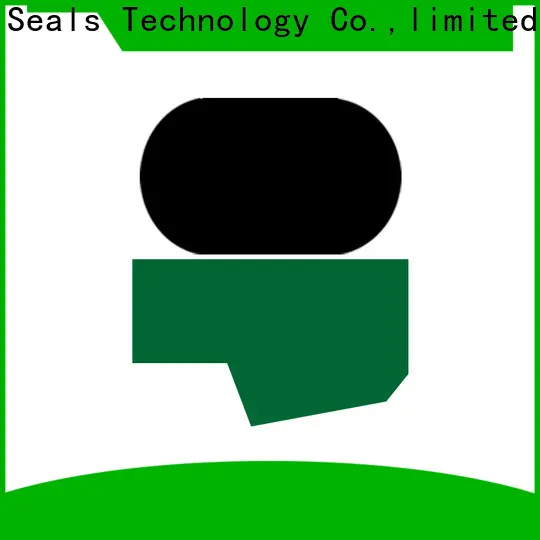

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62
22 25 25	32.7 32.3 35.7	4.2 3.2 4.2	GSJ22*32.7*4.2 GSJ25*32.3*3.2 GSJ25*35.7*4.2	26.57*3.53 26.64*2.62 29.74*3.53
28 30 32	38.7 40.7 42.7	4.2 4.2 4.2	GSJ28*38.7*4.2 GSJ30*40.7*4.2 GSJ32*42.7*4.2	31.34*3.53 34.52*3.53 36.09*3.53
35 36 38	45.7 46.7 53.1	4.2 4.2 6.3	GSJ35*45.7*4.2 GSJ36*46.7*4.2 GSJ38*53.1*6.3	37.69*3.53 40.87*3.53 43.82*5.33
40 40 42	50.7 55.1 57.1	4.2 6.3 6.3	GSJ40*50.7*4.2 GSJ40*55.1*6.3 GSJ42*57.1*6.3	44.04*3.53 43.82*5.33 46.99*5.33
45 45 50	55.7 60.1 60.7	4.2 6.3 4.2	GSJ45*55.7*4.2 GSJ45*60.1*6.3 GSJ50*60.7*4.2	47.22*3.53 50.17*5.33 53.57*3.53
50 55 56	65.1 70.1 66.7	6.3 6.3 4.2	GSJ50*65.1*6.3 GSJ55*70.1*6.3 GSJ56*66.7*4.2	56.52*5.33 59.69*5.33 59.92*3.53
56 56 60	71.1 76.5 75.1	6.3 8.1 6.3	GSJ56*71.1*6.3 GSJ56*76.5*8.1 GSJ60*75.1*6.3	59.69*5.33 62.87*6.99 66.04*5.33
