DMS Seal Manufacturer hydraulic rod seal installer manufacturer for pneumatic equipment
- Dms Seals focuses on the internal management and opens up the market. We actively explore innovative thinking and fully introduce modern management mode. We continuously achieve development in the competition based on strong technical capability, high-quality products, and comprehensive and thoughtful services.
1. DMS Seal Manufacturer is manufactured complying with strict shoe materials requirements. Its quality is guaranteed by the production process which is in charge of qualified QC workers.
2. DMS Seal Manufacturer is manufactured according to standard sizes. This resolves any dimensional discrepancies that might occur between beds and mattresses.
3. The quality control of DMS Seal Manufacturer hydraulic rod seal installer is conducted at the preliminary production stages to guarantee that it meets inspection percentage of the feedstock in the textile industry.
4. hydraulic rod seal installer receives many positive feedback from customers for its .
5. hydraulic rod seal installer has achieve features like , and has met better technical and economic index.
6. hydraulic rod seal installer represents the wisdom crystallization of our outstanding .
7. hydraulic rod seal installer is , and is a guide for industry.
8. This product matches with the latest development of the industry and meets the demands of customers.
9. This product has the characteristics of excellent performance.
10. With the sales skyrocketing, the application potential of the product is rather promising.
11. The product is now being used in most countries around the world due to its huge application prospects.
12. This product has won the favor of new and old customers at home and abroad.
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |

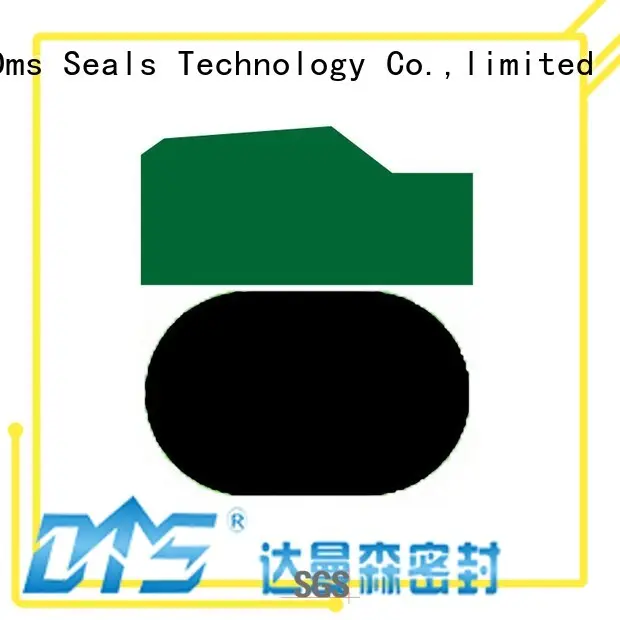

Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is a hydraulic rod seal installer company, which combines design, development, manufacture and sales. Dms Seals Technology Co.,limited is a company that emphasizes development and quality of polyurethane hydraulic seals . Dms Seals Technology Co.,limited is one of China's more efficient rod seal tool makers.
2. Dms Seals Technology Co.,limited is strong for its R&D and production ability. Dms Seals Technology Co.,limited has made technological breakthroughs in developing Dms Seals Technology Co.,limited, such as Piston Seals. Dms Seals Technology Co.,limited strictly control the quality of raw material to make sure quality assurance of hydraulic piston seals .
3. Our clean and big factory keep the production of rod seal catalogue in a good environment. Get info! Dms Seals Technology Co.,limited will never stop and build the road to innovative [核心关键词 design. Get info! Every member of Dms Seals Technology Co.,limited has sincerity and enthusiasm to ensure the most convenient service to our valued clients. Get info! To Dms Seals Technology Co.,limited, technology innovation is a strategic engine for an enterprise’s sustainable development. Get info!
