DMS Seal Manufacturer hydraulic u seal with ptfe nbr and pom for pneumatic equipment

Company Advantages
1. DMS Seal Manufacturer has gone through material appearance inspections. These checks include color, texture, spots, color lines, uniform crystal/grain structure, etc.
2. The development of DMS Seal Manufacturer is professionally conducted. The mature photovoltaic power technology is adopted in its power generation system by the R&D team who spends years investigating solar products.
3. DMS Seal Manufacturer [拓展关键词 goes through several production stages: preparation of yarns, twisting of yarns, ginning, fiber washing, scutching, dyeing, carding, etc.
4. The product has the needed stretch. Its fabric shows proper elasticity without exposing elastic fibers or broken stitches during the stretch test.
5. The product is not prone to scratches. Its anti-scratch coating acts as a protective layer which makes it more durable.
6. The product has good temperature regulation performance. Its breathability enables the moisture to be well regulated inside the shoe.
7. People will not find big shrinkage problems after frequent washing. Instead, it will become more soft to touch over time.
8. While you can't force the feet to stop sweating, you can choose shoe materials that are designed to help air out the feet and eliminate the odor. And that why you should choose this. - Said one of our customers.
9. This product is perfect for matching with other furniture, which will achieve an individual and creative look, injecting personality into space.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

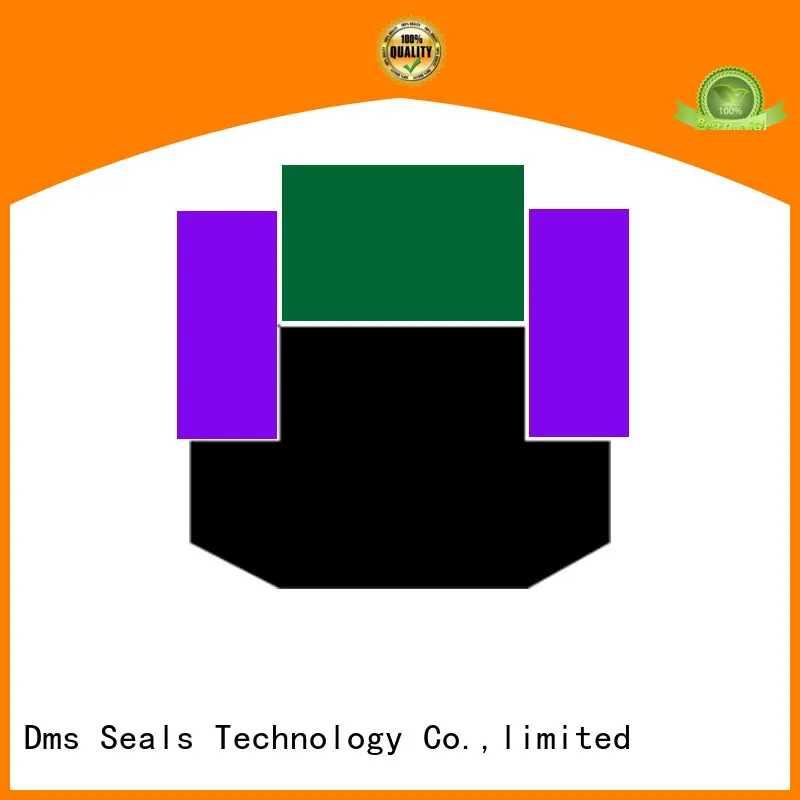

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is an experienced manufacturer and supplier of . We are highly prestigious for our strong capabilities in designing and manufacturing. Dms Seals Technology Co.,limited is renowned as a powerful manufacturer with strong capabilities of manufacturing . We are listed in the famous company list. With rich expertise in R&D, design, and manufacture, Dms Seals Technology Co.,limited has become one of the leading international providers of . Dms Seals Technology Co.,limited is professional and experienced in developing and manufacturing . We are known in the market for providing high-quality products. Established years ago and base in China, Dms Seals Technology Co.,limited has been successfully keeping sharp and competitive in manufacturing .
2. Dms Seals Technology Co.,limited has reached the high-tech level in the hydraulic u seal field. The production process of air piston seal is advanced. We have a strong customer base spread over the world. So far, we have won a relatively big marketplace in the overseas markets with our strong technical base.
3. Our aim is to exceed expectations, to take advantage of new opportunities and to reach out to help our clients achieve success. Our company is striving for green manufacturing. Materials are carefully chosen to reduce environmental impacts. The manufacturing methods we use allow our products to be disassembled for recycling when they reach the end of their useful life. As a company bears social responsibility, we aim to conserve resources and minimize our environmental impact in all of our activities. Achieving sustainable development is our current goal. We make production processes and treatment of wastes step towards a more environmentally acceptable way.

DMS Seal Manufacturer hydraulic u seal with ptfe nbr and pom for pneumatic equipment

hydraulic u seal

Type:
