DMS Seal Manufacturer hydraulic valve seals factory for sale

Company Advantages
1. The raw materials of DMS Seal Manufacturer undergo a strict selection and screening process.
2. Strict production standards: the production process of DMS Seal Manufacturer hydraulic valve seals follows extremely stringent standards. These standards ensure that product performance reaches the predetermined range.
3. DMS Seal Manufacturer are manufactured from best quality materials, which are procured from reliable manufacturers.
4. DMS Seal Manufacturer is manufactured utilizing the precision machining equipment.
5. The product is featured by the first - class quality and stable performance.
6. The inspection of each process of the product is a guarantee of its outstanding performance.
7. The product has the functionality that meets the application needs.
8. It has reliable quality and stable performance.
9. Customer satisfaction and success are the most important measure of Dms Seals Technology Co.,limited's performance.
10. Dms Seals Technology Co.,limited operates in full compliance with the international system.
11. Dms Seals Technology Co.,limited has established a hydraulic valve seals R&D center to meet the increasingly diversified needs of consumers.
12. Different payment terms are accepted by us for your choice for our hydraulic valve seals .

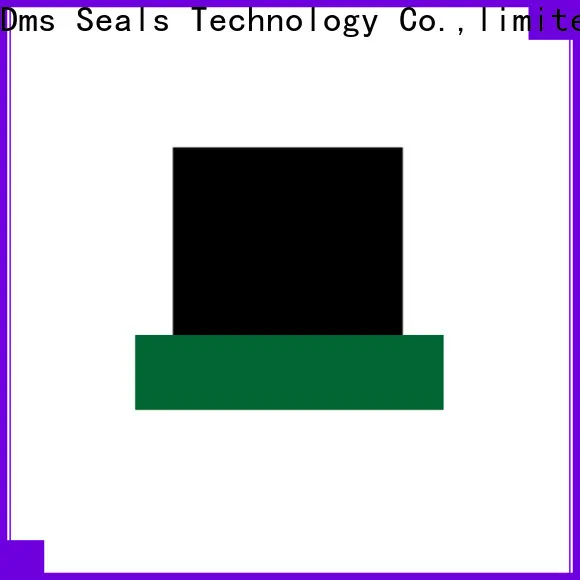

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.



5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. Through years, Dms Seals Technology Co.,limited has been engaged in the design and production of . We are widely accepted in the industry. Over the years, Dms Seals Technology Co.,limited has been focusing on the market research, development, production, and marketing of . We have earned a reputation in the industry. Dms Seals Technology Co.,limited is a market recognized manufacturer. We have become a domestic influential enterprise that is known for being competent in manufacturing .
2. In personnel training, Dms Seals Technology Co.,limited has plenty of technology-oriented R&D team for hydraulic valve seals . Technology of fully automatic production equipment is mastered by Dms Seals Technology Co.,limited. Dms Seals Technology Co.,limited is a reliable supplier for its high quality of hydraulic packing kits .
3. Dms Seals Technology Co.,limited aims to provide you with a competitive price system. Call! We concern the environment and the future. We will occasionally carry out training sessions for production workers on the issues of water pollution control, energy conservation, and environmental emergency management. Our goal is to make a measurable impact on people, society, and the planet—and we are well on the way. Call! Sustainability and corporate social responsibility initiatives are going to be implemented strictly by the company in the coming years. By improving the operation ways and production process, we plan to lower the cost of operation and benefit the society by using fewer resources. Call! We strive to provide quality service to customers. Our sales department will give a quick response, and the logistics department will organize and track all the goods and respond to inquiries in a timely manner. Call!

DMS Seal Manufacturer hydraulic valve seals factory for sale

hydraulic valve seals

Type:
