DMS Seal Manufacturer Latest hydraulic cylinder piston seals Supply for sale
1. New type of material is used in hydraulic cylinder piston seals .
2. Dms Seals Technology Co.,limited has adopted new technology to change the existing structure of hydraulic cylinder piston seals .
3. Excellent design and great outline go together for hydraulic cylinder piston seals .
4. make hydraulic cylinder piston seals practically and easy to operate.
5. The best hydraulic cylinder piston seals material in accordance with is selected.
6. DMS Seal Manufacturer delivers high performance products that are cost-effective, customer-need specific.
7. The performance index of hydraulic cylinder piston seals is in the domestic leading position.
8. This product is examed on the international standards instead of the national rules.
9. It is promoted in the field due to strong applicability.
10. Dms Seals Technology Co.,limited provides customers with transparency throughout the entire process.
11. Dms Seals Technology Co.,limited strictly controls the quality and makes the best service.
12. After investigating the consumer groups and consumer demand, Dms Seals Technology Co.,limited targets consumption at medium and high levels.
13. The competitive advantage of the product derives from a unique prospect.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |

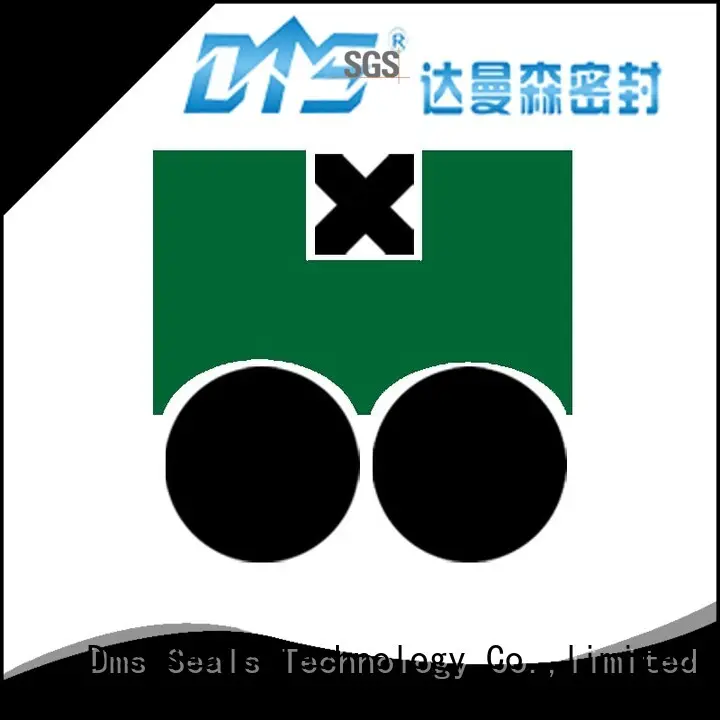

Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited has obtained a high industry status for its superior hydraulic cylinder piston seals . Dms Seals Technology Co.,limited is competitive in its industry as a large manufacturer for hydraulic piston seals . Dms Seals Technology Co.,limited is a supplier who supplies elaborate pneumatic piston seals . Dms Seals Technology Co.,limited has been providing specialized hydraulic piston seals suppliers solutions all the years.
2. Our factory operates from a state-of-the-art production facility designed and constructed specifically for the high volume manufacture of our diverse range of products. Dms Seals Technology Co.,limited is famous for its technical accomplishments. A solid technical foundation is the key to Dms Seals Technology Co.,limited greatly improving the quality of piston seals .
3. We leverage diversity through inclusion of employees, empowering them to shape the future of the corporation through collaboration and innovation. Inquiry! Our goal is to provide clients with the best product solution and help their businesses grow. We attach importance to clients' problems and requirements and develop a strong and effective solution that works perfectly in their markets. Inquiry! In the future, we will implement business management, strengthen core competencies, and enhance equipment, technology, management and R&D capabilities to improve operational performance. Inquiry!
DMS Seal Manufacturer Latest hydraulic cylinder piston seals Supply for sale
