Product Comparison
Dms Seals provides diversified choices for customers.
O-ring Seal is available in a wide range of types and styles, in good quality and in reasonable price.Dms Seals's O-ring Seal has better performances in the following aspects.
Company Advantages1. DMS Seal Manufacturer meets the specification. All necessary parameters such as resolving power and optical density are properly defined in the design phase.
2. Testing for DMS Seal Manufacturer includes several aspects. It will be tested in terms of its work blank, components and parts, and raw materials in virtue of measuring appliances that are designed for the machinery.
3. DMS Seal Manufacturer has a stylish design. Following the latest fashion trends and made with the assistance of CAD software, its design will never go out of date.
4. The product is not subject to electromagnetic interference. Its coated insulation materials are carefully designed to stave off the magnetization.
5. The product features proper sizes. The external toe cap length and the length from heel to toe are all typically measured by inspectors.
6. The product is cruelty-free. The contained ingredients have not been tested on animals including acute toxicity testing, eye, and skin irritation testing.
7. Since its establishment, Dms Seals Technology Co.,limited has won praises from many users.
8. Its future market has long-term development potential.
9. Dms Seals Technology Co.,limited will improve responsiveness to meet the changing needs of different global customers.
10. DMS Seal Manufacturer provides excellent after sales support on oil seal hydraulic .
Installation Recommendation
![undefined undefined]()
Installation Sizes
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section |
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 |
70
70
75 | 59
54.5
64 | 4.2
6.3
4.2 | DAQ70*59*4.2
DAQ70*54.5*6.3
DAQ75*64*4.2 | 56.74*3.53
53.34*3.53
63.09*3.53 |
80
80
85 | 64.5
59
69.5 | 6.3
8.1
6.3 | DAQ80*64.5*6.3
DAQ80*59*8.1
DAQ85*69.5*6.3 | 62.87*5.33
58*7.0
69.22*5.33 |
85
90
90 | 64
74.5
69 | 8.1
6.3
8.1 | DAQ85*64*8.1
DAQ90*74.5*6.3
DAQ90*69*8.1 | 63*7.0
72.39*5.33
68*7.0 |
95
95
100 | 79.5
74
84.5 | 6.3
8.1
6.3 | DAQ95*79.5*6.3
DAQ95*74*8.1
DAQ100*84.5*6.3 | 78.74*5.33
73*7.0
81.92*5.33 |
100
105
105 | 79
89.5
84 | 8.1
6.3
8.1 | DAQ100*79*8.1
DAQ105*89.5*6.3
DAQ105*84*8.1 | 78*7.0
88.27*5.33
83*7.0 |
110
110
115 | 94.5
89
99.5 | 6.3
8.1
6.3 | DAQ110*94.5*6.3
DAQ110*89*8.1
DAQ115*99.5*6.3 | 91.44*5.33
88*7.0
97.79*5.33 |
115
120
120 | 94
104.5
99 | 8.1
6.3
8.1 | DAQ115*94*8.1
DAQ120*104.5*6.3
DAQ120*99*8.1 | 93*7.0
100.97*5.33
98*7.0 |
125
125
130 | 109.5
104
114.5 | 6.3
8.1
6.3 | DAQ125*109.5*6.3
DAQ125*104*8.1
DAQ130*114.5*6.3 | 107.32*5.33
103*7.0
113.67*5.33 |
130
135
140 | 109
114
119 | 8.1
8.1
8.1 | DAQ130*109*8.1
DAQ135*114*8.1
DAQ140*119*8.1 | 108*7.0
113.67*5.33
116.84*7.0 |
150
160
170 | 129
139
149 | 8.1
8.1
8.1 | DAQ150*129*8.1
DAQ160*139*8.1
DAQ170*149*8.1 | 126.37*7.0
135.89*7.0
145.42*7.0 |
180
190
200 | 159
169
179 | 8.1
8.1
8.1 | DAQ180*159*8.1
DAQ190*169*8.1
DAQ200*179*8.1 | 158.12*7.0
164.47*7.0
177.17*7.0 |
210
220
230 | 189
199
209 | 8.1
8.1
8.1 | DAQ210*189*8.1
DAQ220*199*8.1
DAQ230*209*8.1 | 183.52*7.0
196.22*7.0
208.92*7.0 |
240
250
250 | 219
229
225.5 | 8.1
8.1
8.1 | DAQ240*219*8.1
DAQ250*229*8.1
DAQ250*225.5*8.1 | 215.27*7.0
227.97*7.0
227.97*7.0 |
Company Features1. By integrating and , DMS Seal Manufacturer has enough confidence to offer oil seal hydraulic with high quality and affordable price. Over the years, Dms Seals Technology Co.,limited has been a major hydraulic press seals manufacturing base in China. DMS Seal Manufacturer owns a unique competitive advantage in the field of spareage piston seals .
2. Dms Seals Technology Co.,limited is equipped with strong research strength, having an R&D team dedicated to developing all types of new piston seal hydraulic . Different mechanisms are provided for fabricating different
rod seal catalogue . Dms Seals Technology Co.,limited has successfully got several patents for technology. Our hydraulic sealing solutions is easily operated and need no additional tools.
3. Dms Seals Technology Co.,limited takes pride in its unique culture and great organizational soul, and we will not let you down. Get more info! Dms Seals Technology Co.,limited actively shapes the current and future markets of buy hydraulic seals . Get more info! Dms Seals Technology Co.,limited believes that its hydraulic oil seal manufacturers will surely offer you a leading position. Get more info! Customers will definitely find something interesting at DMS Seal Manufacturer. Get more info!

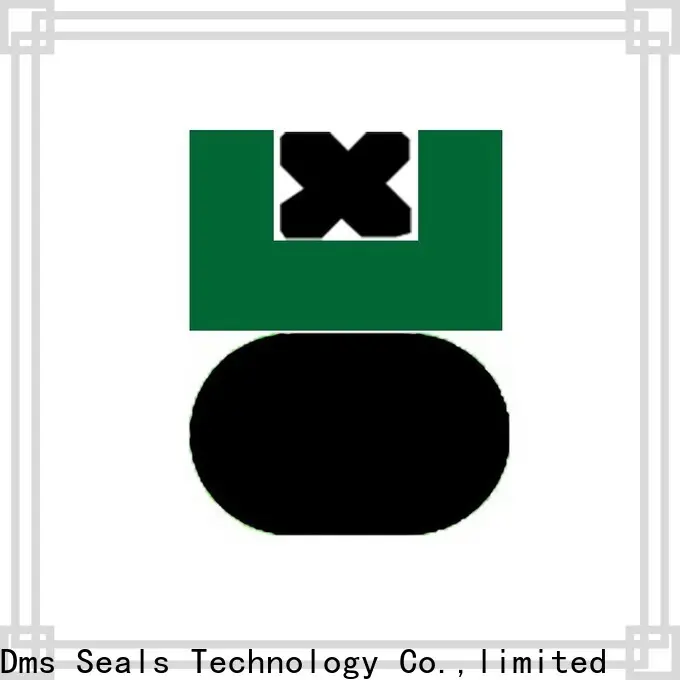

DMS Seal Manufacturer Latest oil seal hydraulic company for sale
