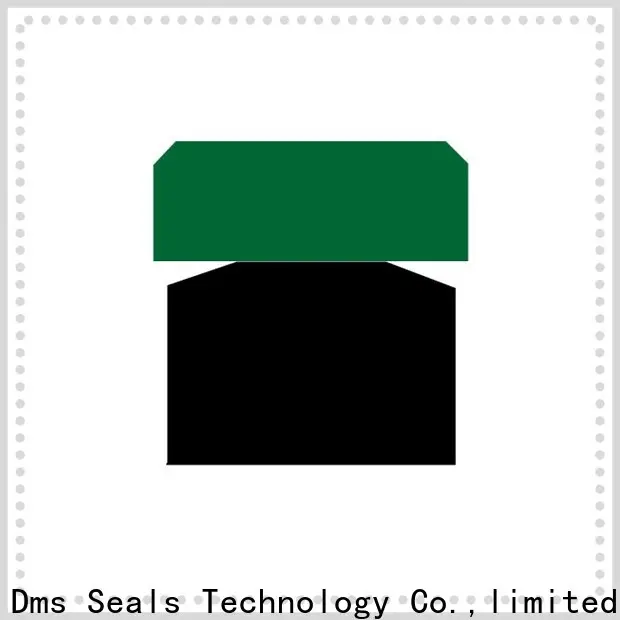

DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 1
DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 2
DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 1
DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 2

DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment

Diameter Range:
3-1600mm
Pressure Range:
0-60MPa
Temperature Range:
-30℃+100℃
Speed:
5m/s
Medium:
hydraulic oil, flame retardant liquid, water and others
Inquiry
Product Comparison
Oil Seal Manufacturer has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.Compared with same kind of products in the industry, Oil Seal Manufacturer has the following highlights due to the better technical capability.
  • DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 3
    DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 4
Product Details
With a focus on product quality, Dms Seals strives for quality excellence in the production of Oil Seal Manufacturer.Dms Seals insists on the use of high-quality materials and advanced technology to manufacture Oil Seal Manufacturer. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
  • DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 5
Company Advantages
1. The material of rod seals or piston seal is not only superior, but also .
2. Such materials as will help provide long service life of rod seals or piston seal .
3. The well-selected materials guarantee the quality of rod seals or piston seal .
4. This product features wear comfort. Relevant knowledge such as skin and senses, sensations and fabrics, psychological factors, and overall comfort perception is successfully applied in its material selection.
5. The product is anti-slip. Its compounded materials offer certain skid resistance which provides better traction to the feet.
6. The product is distinguished by its durability. It is built to endure the harshest wear conditions of weather or other exterior elements.
7. Dms Seals Technology Co.,limited has high demand on outer packing for rod seals or piston seal .
8. Innovation gives an inexhaustible force to the development of rod seals or piston seal .
9. Dms Seals Technology Co.,limited makes himself develop rapidly by abundant design and manufacturing capacity.
Installation Recommendation

undefined

Installation Sizes

Bore    Diameter

Groove  Diameter

Groove Width

Radius

Radial    Clearance                         S    max.

D H8

d h8

L1+0.2

R1

16MPa

26MPa

32MPa

40MPa

55.0-149.9

D-10.0

10.0

0.4

0.60

0.50

0.40

0.40

150.0-244.9

D-12.5

12.5

0.4

0.75

0.65

0.55

0.50

245.0-500.0

D-15.0

15.0

0.8

0.75

0.65

0.55

0.50

500.1-760.0

D-17.5

17.5

1.2

0.75

0.65

0.55

0.50

760.1-999.9

D-20.0

20.0

1.2

0.80

0.70

0.60

0.55

≧1000

D-20.0

20.5

1.2

0.80

0.70

0.60

0.55

Application and properties

Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-30℃+100℃

5 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

D H8

d h8

L+0.2

55
60
70

40
45
55

10
10
10

GSF-W55*40*10
GSF-W60*45*10
GSF-W70*55*10

80
90
100

60
70
80

10
10
10

GSF-W80*60*10
GSF-W90*70*10
GSF-W100*80*10

110
115
120

90
95
100

10
10
10

GSF-W110*90*10
GSF-W115*95*10
GSF-W120*100*10

130
140
150

110
120
125

10
10
12.5

GSF-W130*110*10
GSF-W140*120*10
GSF-W150*125*12.5

160
165
170

135
140
145

12.5
12.5
12.5

GSF-W160*135*12.5
GSF-W165*140*12.5
GSF-W170*145*12.5

180
185
190

155
160
165

12.5
12.5
12.5

GSF-W180*155*12.5
GSF-W185*160*12.5
GSF-W190*165*12.5

200
205
210

175
180
185

12.5
12.5
12.5

GSF-W200*175*12.5
GSF-W205*180*12.5
GSF-W210*185*12.5

215
220
225

190
195
200

12.5
12.5
12.5

GSF-W215*190*12.5
GSF-W220*195*12.5
GSF-W225*200*12.5

230
240
245

205
215
215

12.5
12.5
15

GSF-W230*205*12.5
GSF-W240*215*12.5
GSF-W245*215*15

undefined
Installation Dimensions

Company Features
1. DMS Seal Manufacturer is a company who pays a lot of attention to the rod seals or piston seal and service provided to customers. DMS Seal Manufacturer is a distinguished supplier who focuses on producing high-end ranges of shaft seal design . Dms Seals Technology Co.,limited is a technologically advanced company in the field of seal pneumatics inc . Dms Seals Technology Co.,limited has been developing into a mature double acting seal supplier.
2. With a strong technical research and develop team, Dms Seals Technology Co.,limited is highly recognized by rubber piston rings market. Dms Seals Technology Co.,limited is equipped with international advanced production equipment. It is important for DMS Seal Manufacturer to keep innovative especially in the technology in this changing society. Dms Seals Technology Co.,limited has advanced machines and equipment for piston seal additive production. Dms Seals Technology Co.,limited has excellent, professional technical team, proficiency in the international and domestic advanced dental technology.
3. We are committed to sustainable development. We work to reduce our demand for energy through conservation and constantly improving the energy efficiency of our equipment. We always insist on the management policy of 'surviving by the quality and seeking vitality by innovation'. We continuously keep up with market trends to innovate products, so as to make our products competitive. We have been maintaining the principle of environmental responsibility to partake in environmental conservation and management. For example, we require the production team to store or discharge waste safely and legitimately. To protect our environment, we constantly maintain strict environmental and sustainability standards throughout every stage of our manufacturing process. We aim to build a sustainable business based on uncompromising ethics, fairness, diversity, and trust among our suppliers, retailers, and consumers.

DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment

rod seals or piston seal

Type:

DMS Seal Manufacturer Latest rod seals or piston seal company for pneumatic equipment 8

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
