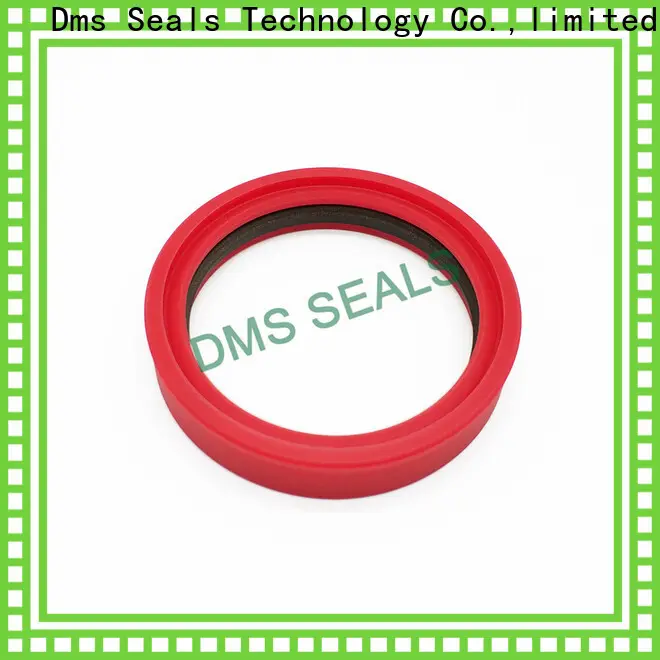

DMS Seal Manufacturer mechanical seal operation supplier for piston and hydraulic cylinder

Company Advantages
1. mechanical seal operation outshine other similar products with its materials. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. The product is becoming more famous over the years due to its huge economic benefits. We have developed solutions of the sealing of special working condition
3. It has reliable colorfastness. It is mandatory to identify and eliminate any possible colorfastness risks prior to production. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
4. The product only produces little noise pollution. It adopts one of the most basic ways to control noise - get rid of as much friction as possible. Quality control of the seals is the basis for DMS Seals
5. The product can run continuously for a long time. It is developed with cutting-edge technology which makes it run stably all the time without failure. The high pressure seals have strong wear resistance to hard conditions

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Quality speaks louder than number in Dms Seals Technology Co.,limited.
2. In order to attract more customers, DMS Seal Manufacturer will focus on the quality of customer satisfication. Get more info!
