DMS Seal Manufacturer mechanical seal retainer Supply for reciprocating piston rod or piston single acting seal

Company Advantages
1. DMS Seal Manufacturer mechanical seal retainer goes through a wide range of fundamental tests. These tests are flammability testing, stain resistance testing, and durability testing, among others.
2. The design of DMS Seal Manufacturer mechanical seal retainer is interpreted within the context of current fashion. All of the design elements, including lines, proportion, colors mix, fabrics type and texture are decided for adoption on the basis of trend in the fashion industry.
3. The production process of DMS Seal Manufacturer mainly involves these following stages: foot type collection, CAD graphic design, pattern cutting, machining, trimming, and finishing.
4. DMS Seal Manufacturer is designed under the combination of various factors. They are lines, body proportion, style, color and texture, aesthetic sense, and others.
5. There are two kinds of screen color widely used for DMS Seal Manufacturer . One is the traditional white that has been in use for decades, and the other is a light to medium gray.
6. DMS Seal Manufacturer strives forward to ensure the high quality of this product.
7. The product is developed with characteristics of stable performance and good durability.
8. The rigorous testing process makes the product be high quality and stable performance.
9. Our professional team ensures that the product is flawless and trouble-free before leaving the factory.
10. The product is especially suitable for people with flat feet and plantar fasciitis because it offers enough foot arch support and cushion.
11. People who wear this product have the same comment on it: it is soft and comfortable. Not itchy or too thick.
12. The product can effectively ease the pain of the heel caused by long walking and standing for it offers decompression.

1. Application and properties

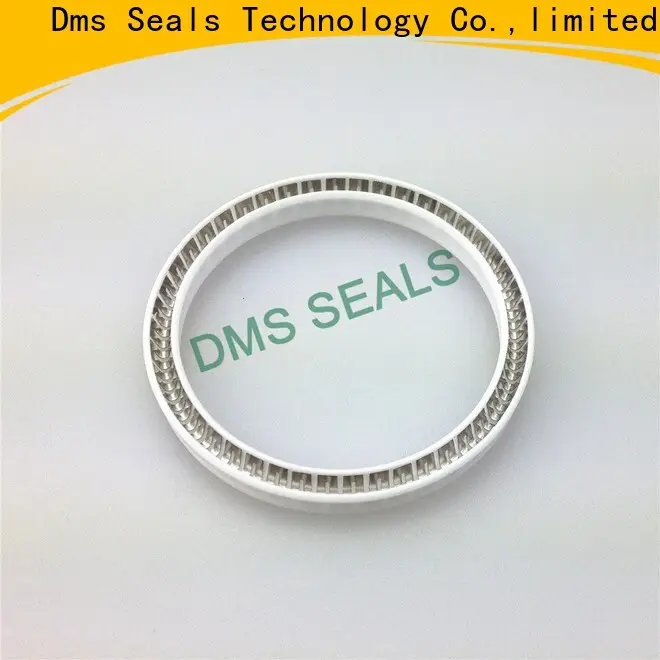

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.
