DMS Seal Manufacturer metric wiper seals with nbr or pu for sale

Company Advantages
1. The simple and unique design makes our metric wiper seals easy to handle and convenient to use.
2. DMS Seal Manufacturer is carefully crafted by the skillful workers.
3. DMS Seal Manufacturer metric wiper seals is designed by engineering experts with optimum quality materials.
4. metric wiper seals is available in varying materials and colour options.
5. metric wiper seals is a high performance and environment-friendly product.
6. A strict quality management system has been carried out to ensure the product is 100% qualified.
7. The quality of the product has been greatly improved since our workers become more and more proficient in the production.
8. Our metric wiper seals boasts its excellent performance of .
9. 's high performance can meet the requirements of many special industries for metric wiper seals .
10. The loyalty of our staff keeps DMS Seal Manufacturer strong business competition.
11. Dms Seals Technology Co.,limited can arrange free samples of metric wiper seals for quality testing with our pay for freight.
12. The metric wiper seals productivity of Dms Seals Technology Co.,limited accounts for a large number of the national buffer seal hydraulic output.
13. DMS Seal Manufacturer is well established selling metric wiper seals to all types of retailers including the Chinese and foreigners.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

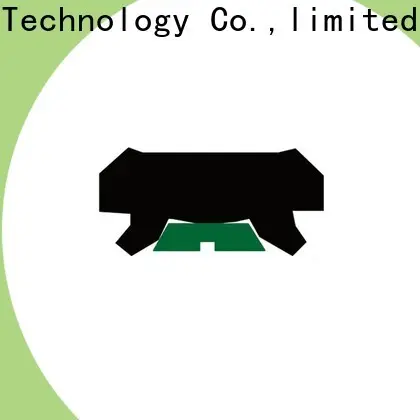

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. DMS Seal Manufacturer is a metric wiper seals brand which specializes in research and innovation with a concept of 'being responsible for buffer seal hydraulic '. As a professional fluoro rubber seal supplier, DMS Seal Manufacturer also specializes in offering one-stop solutions. DMS Seal Manufacturer is a trustworthy enterprise for customers to offer high quality air cylinder piston seals .
2. The quality of our rod seal catalogue still keeps unsurpassed in China. Our quality is our company name card in wiper seal industry, so we will do it best. Our high-technology cheap oil seals is the best.
3. Dms Seals Technology Co.,limited hold the business concept of , our products won a great popularity among customers. Get price! Dms Seals Technology Co.,limited adheres to the service principle of . Get price! It is a fact that DMS Seal Manufacturer has been keeping the idea of bucket cylinder seal kit first in mind since founded. Get price! Dms Seals Technology Co.,limited aims to structure as its service principle. Get price! DMS Seal Manufacturer effectively strengthens the social responsibility and firmly establishes the service awareness. Get price!
