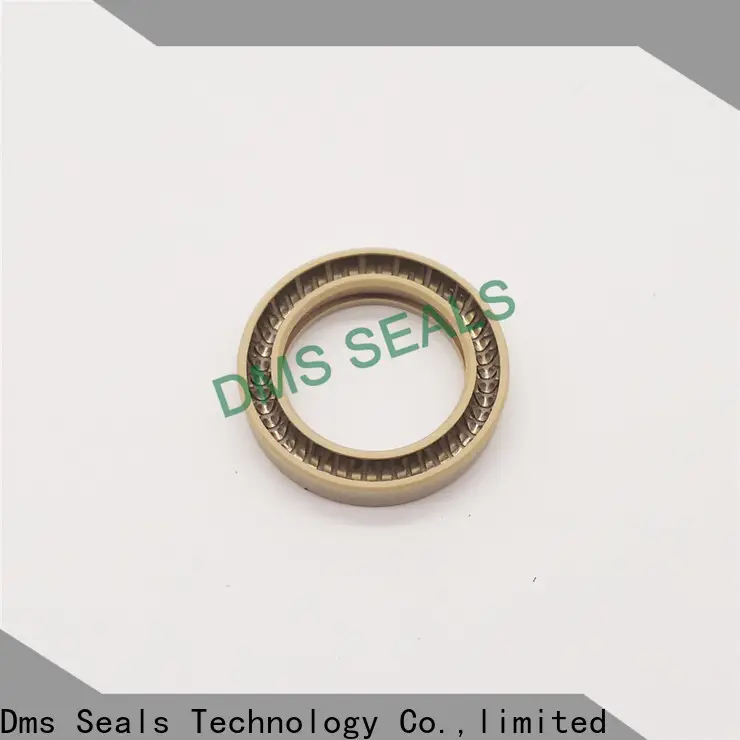

DMS Seal Manufacturer New mechanical seal retainer company for reciprocating piston rod or piston single acting seal

Company Advantages
1. DMS Seal Manufacturer meets the regulations of the Administration of Power Supply. It has been tested for voltage fluctuation and current, and the test proofs that it runs safely and stably in the power supply system.
2. The quality and safety testings of DMS Seal Manufacturer mechanical seal retainer cover several aspects. They include EMI test, insulation test, overload and overvoltage protection, as well as housing quality.
3. The quality of DMS Seal Manufacturer can be guaranteed. It is sent to the reputable third-party quality testing institution which offers certification services for pool and spa component manufacturers in a variety.
4. DMS Seal Manufacturer will be extracted using different methods. Based on the demanded metal ingredients, it can be processed by physical, chemical, or electrolytic methods.
5. The product is safe to use. The materials used in the product are inspected to exclude any harmful substances. It is known as lead and mercury-free.
6. The product has the desired reliability. It is equipped with an intelligent circuit breaker that features reliability and accuracy, ensuring it can work without failure.
7. It is properly reflective. Made of a special material with a fine structure, it bundles the projected light and reflects without degrading the quality.
8. The product features a reliable electrical system. It will auto stop working when open circuit, short circuit, and electric leakage occurs.
9. With a remarkable economic return, the product is considered as the most promising product in the market.
10. This product is widely used in various applications.
11. The product has a great future in this realm because of its remarkable economic return.
12. The product has found wide application in various fields.
13. This product can bring significant economic benefits to customers and is increasingly popular in the market.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Owing to the remarkable competence in developing and manufacturing , Dms Seals Technology Co.,limited is recognized as a qualified player in the market. With years of efforts on manufacturing , Dms Seals Technology Co.,limited has been one of the most qualified manufacturers and suppliers in the industry. Praised as a highly professional manufacturer of mechanical seal retainer , Dms Seals Technology Co.,limited has been engaged in this industry for years.
2. Over the years, we have achieved great success. We have been honored "Advanced Export Brand", "Famous Trademark", and other kinds of business integrity credibility. In a global economic environment, we ship our products across China and to other countries, including America, Australia, Japan, and South Africa. We have experienced technical designers and manufacturing engineers. They contribute a lot to the functionality, performance, as well as visual appeal of our product. We boast a pool of excellent designing team. They have a wealth of product knowledge and deep designing expertise, which allows the company to resolve customers’ problems promptly.
3. The goal that DMS Seal Manufacturer commits to be the leading carbon teflon seals manufacturer turns to be important. Inquire online! DMS Seal Manufacturer creates an environment for the long-term development of its customers. Inquire online! Product innovation is the soul of Dms Seals Technology Co.,limited. Inquire online! Dms Seals Technology Co.,limited is committed to ensuring our mechanical seal brands translate into real value for our customers. Inquire online!
