DMS Seal Manufacturer o-ring seal with nbr or fkm o ring to high and low speed

Company Advantages
1. DMS Seal Manufacturer rod seal catalogue is strictly tested. It has to go through various kinds of tests such as special testing for chemical resistance, aging, low-temperature performance, abrasion resistance, etc. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. This product brings enhanced attractiveness. It gives a clean, sophisticated, and unique appearance, which is now associated with contemporary design. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
3. It is highly safe to use. The product features built-in protection functions that can prevent any accidental issues, such as electric leakage. We can support OEM and ODM

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

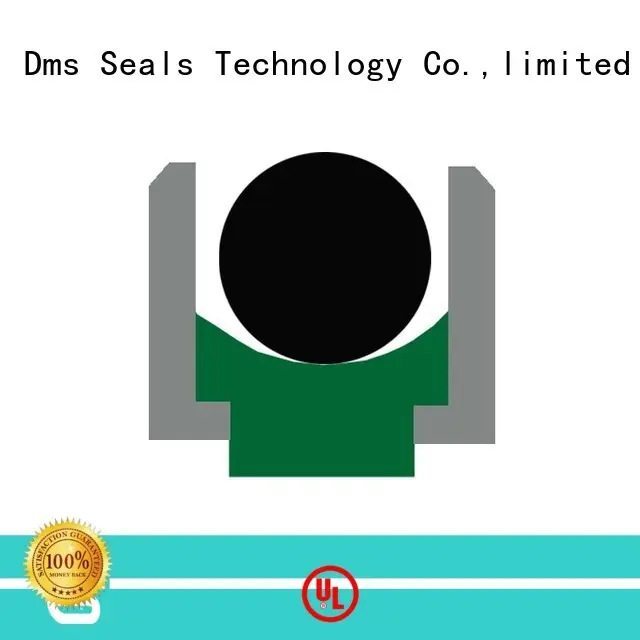

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. Dms Seals Technology Co.,limited as a o-ring seal provider, is a specialist in the industry. All of our exquisite goods, including O Ring Manufacturers , are produced by our state-of-the-art machines and skilled technicians.
2. Dms Seals Technology Co.,limited has been rigorously selecting high-tech and new environmental protection rod seals .
3. Technical support of Dms Seals Technology Co.,limited enhances the quality of hydraulic rod seals . We have aware of the importance of sustainability issues. We will make corresponding plans to set our actions to gear to achieve sustainable development, such as reducing waste and conserving energy resources.
