DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer piston rod seals hydraulic for light and medium hydraulic systems
- Since the establishment, Dms Seals has always been adhering to the service concept to serve every customer wholeheartedly. We receive acclaim from customers by providing thoughtful and caring services.
1. piston rod seals hydraulic is shaped in different ways.
2. Design result showed that the framed structure of piston rod seals hydraulic has characters of handsome appearance.
3. The design of our is commensurate with the rapidly-changing piston rod seals hydraulic market.
4. The product needs little effort. It is designed under the user-friendly concept which aims to finish the pool cleaning work with the least amount of labor.
5. It is not vulnerable to moisture. Its materials have been treated with some damp-proof agents, making it not prone to the water conditions.
6. The product stands out for its safety. All its components, conductors, terminals are well encapsulated to prevent accidental contact.
7. The product is highly sanitary. It has a non-porous and clean surface area that will not nurture germs or infections.
8. We can provide you one-stop solution and effective suggestions after you buy our piston rod seals hydraulic .
9. We DMS Seal Manufacturer, are occupied in exporting and manufacturing superior quality range of piston rod seals hydraulic .
10. produced by Dms Seals Technology Co.,limited is highly marketable.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.

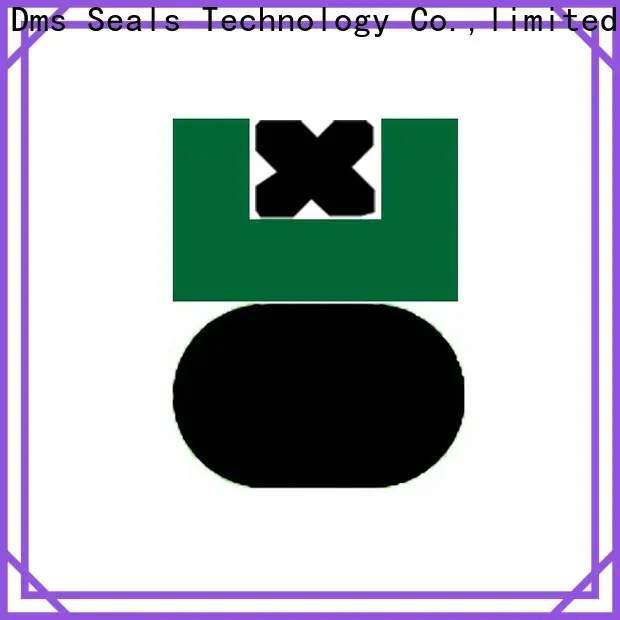

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. Dms Seals Technology Co.,limited is the main supplier for piston rod seals hydraulic at home and abroad. Dms Seals Technology Co.,limited owns an independent factory to produce merkel piston seal . With great popularity in market for our power seal pistons , Dms Seals Technology Co.,limited has grown to be a leading enterprise in this trade. With experienced technicians and advanced equipment, we are a piston cup seal suppliers manufacturer better than other factories.
2. All our technical staff are rich in experience for kit seal cylinder . Our technology is always one step ahead than other companies for piston seal additive . Our technology takes the lead in the industry of hydraulic cylinder seals and wipers . All our hydraulic cylinder gaskets have conducted strict tests. Our advanced machine is able to fabricate such piston lip seal with features of [拓展关键词/特点].
3. We' re putting efforts on the impacts we made on the environments. In our production, we constantly use innovative methods that can minimize the ecological impact of our production waste. Our company grows in every possible way to meet the future. This increases the services we provide to our customers and brings them the best industry. Contact! We endeavor to win more support and trust from customers. We'll continuously listen to and meet clients' needs with respect and pay attention to corporate responsibility to eventually persuade clients to build business partnerships with us. At the heart of our company are employees and values. We encourage our valuable and talented team to work for the company's goals based on quality, delivery, and service. Contact! Our firm bears societal responsibilities. We boost our resources through enhanced efficiency and distinct use for better products while decreasing environmental effects.
