DMS Seal Manufacturer piston seal hydraulic Supply to high and low speed

Company Advantages
1. The design of DMS Seal Manufacturer piston seal hydraulic is strictly taken into consideration. It is thought about how it should look, what qualities it must have and its dimensions.
2. The quality assurance testing of DMS Seal Manufacturer is completed under design conditions before delivery, ensuring fewer issues and a better cooling effect during start-up and commissioning.
3. DMS Seal Manufacturer is constantly inspected. It is checked for issues in stitching, including conducting seam strength tests and checks for fraying, skipped stitches, open stitches, crooked stitches, and puckered seams.
4. The product features weather resistance. It has the ability to resist severe cold, hot, dry and humid environment for a long time.
5. This product has the advantage of the non-slip function. Its ergonomic design provides both grip and maximum friction on the surface.
6. The product features temperature stability. It is operational in extremely cold or hot conditions without being affected by the temperature variations.
7. The product is energy efficient. It has a built-in power management system which will sleep when it is not in use.
8. Using this product can significantly help prevent people's foot problems such as fungal nail infections, the pain of the feet, and serious joint.
9. This product can significantly enhance the wearers' confidence. People who wear this product feel more energetic and positive.
10. This product will not lose its shape after washing, if anything, it will become softer and more pleasant to the skin over time.
11. This product benefits people in the aspect of reducing foot muscle fatigue and pain. When people walk, it will not cause an oppress feeling to the feet.
12. With this product, people can create a striking space to live in or work in. Its color scheme completely alters the look and feel of spaces.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

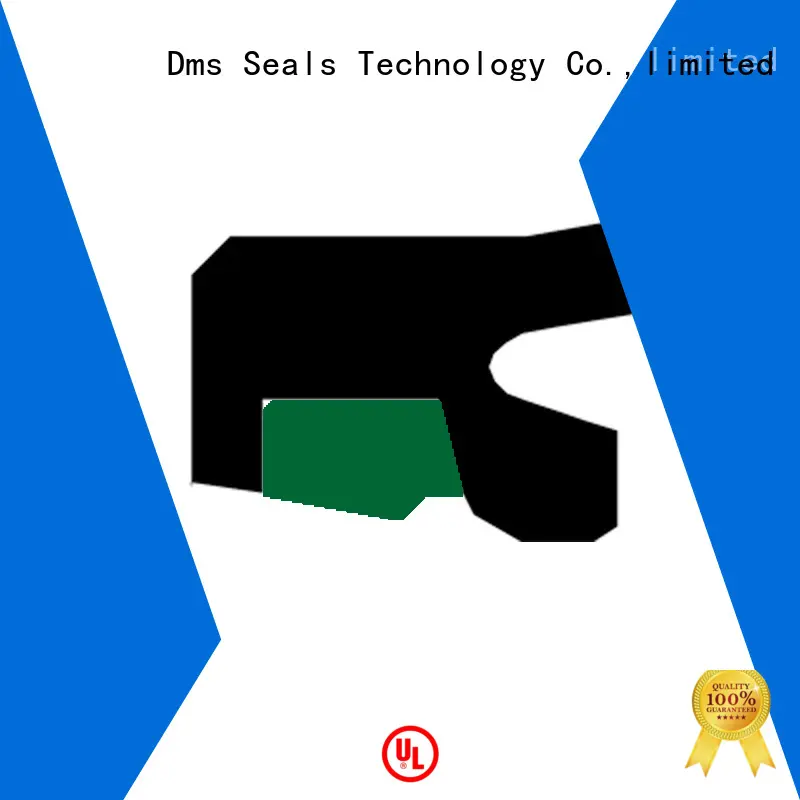

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited has grown into one of the very professional piston seal hydraulic manufacturers. Dms Seals Technology Co.,limited has strong technical strength and processing capabilities. After years of steady development, Dms Seals Technology Co.,limited has become one of the leading hydraulic seals india manufacturers. DMS Seal Manufacturer is China's outstanding hydraulic pump seals suppliers system complete solution supplier. Dms Seals Technology Co.,limited is rubber piston seal a global supplier and manufacturer with high quality.
2. Dms Seals Technology Co.,limited has strong scientific research and technical strength. With the help of our advanced machines, there is seldom defected hydraulic rod seals produced. A solid technical foundation is the key to Dms Seals Technology Co.,limited greatly improving the quality of hydraulic rod seals online . We have export rights for our brand products. This license significantly eliminates the barrier to international trade. This license enables us to closely cooperate with overseas enterprises and expand our product markets. As a powerful technology firm, Dms Seals Technology Co.,limited has been enhancing the production efficiency.
3. Dms Seals Technology Co.,limited takes customer's satisfaction as our ultimate goal. Get quote! Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Get quote! Creating value for customer is Dms Seals Technology Co.,limited's unremitting dream! Get quote! Because of professionalism, Dms Seals Technology Co.,limited wins trust from customers at home and abroad. Get quote! The establishment of core corporate system of viton rubber seal will boost the development DMS Seal Manufacturer. Get quote!
