DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer piston seal manufacturers with ptfe nbr and pom for light and medium hydraulic systems
- Dms Seals is dedicated to providing satisfactory services based on customer demand.
1. DMS Seal Manufacturer is designed in a professional way. The designed is carried out by senior interior architecturers, considering the layout and space integration, as well as harmonious proportions with space.
2. DMS Seal Manufacturer is carefully designed. Special emphasis is placed on its human and functional factors as well as the aesthetics and use of materials.
3. DMS Seal Manufacturer piston seal manufacturers will be strictly inspected in the aspects of its quality. Quality defects will be checked with regard to poor lasting performance, incomplete bonding, and stitching errors.
4. The design of DMS Seal Manufacturer piston seal manufacturers takes into account many factors. These factors are spatial function, spatial layout, spatial aesthetic, and so forth.
5. piston seal manufacturers has remarkable performance.
6. piston seal manufacturers is available with complete product types.
7. Compared with normal piston seal manufacturers , has more obvious advantages.
8. QC is strictly incorporated into every procedure of piston seal manufacturers 's production.
9. Our after-sales team will be 24 hours online to answer all your questions about piston seal manufacturers .
10. Since the establishment of a well-organized service team, DMS Seal Manufacturer has received more and better comments from customers.
11. DMS Seal Manufacturer has realized that it must enhance its brand honor.
Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |

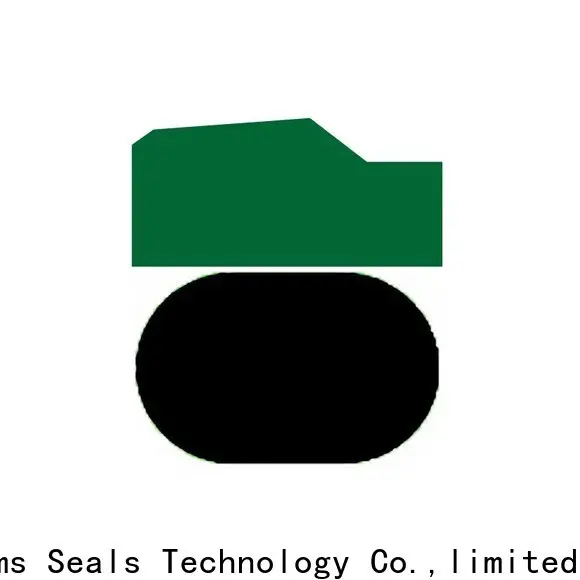

Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.
Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. Dms Seals Technology Co.,limited has achieved substantial development in the developing and manufacturing of . We are a recognized company in the market. Dms Seals Technology Co.,limited is engaged in the development, manufacture, and sale of and relevant products on a global basis. Dms Seals Technology Co.,limited is here to provide customers with high quality products such as and excellent customer service. Professionalism has made Dms Seals Technology Co.,limited well-known. We have gained good market reputation from customers relying on quality . Dms Seals Technology Co.,limited is a well-positioned manufacturer of . Over the years, we have gained years of experience in the production of .
2. DMS Seal Manufacturer is a famous brand which has advanced piston seal manufacturers production technologies. With the mastering of advanced technology, DMS Seal Manufacturer can produce hydraulic sealing solutions with excellent performance. DMS Seal Manufacturer has invested a lot of energy to produce high quality o-ring seal . Dms Seals Technology Co.,limited has unique understanding of buy hydraulic seals . hydraulic u seal is exquisitely made by the advanced machines.
3. DMS Seal Manufacturer sticks to the 'three new' policy: new materials, new processes, new technology. Check it! Constant innovation and improvement will be made in hydraulic sealer . Check it! 'Keep improving in hydraulic seal design field' is DMS Seal Manufacturer's striving aim. Check it! Offering the most considerate service is the rule that DMS Seal Manufacturer staff need to abide by. Check it! DMS Seal Manufacturer holds the tenet of customer service. Check it!
DMS Seal Manufacturer piston seal manufacturers with ptfe nbr and pom for light and medium hydraulic systems
